Falcon TM501L AVA Entry Lever Lock, Less Cylinder, Avalon Style

6-7 weeks lead time
$290.71
Price: $582.00
Instant Savings $291.29

FREE SHIPPING

SKU: TM501L AVA 626
Series: TM - Grade 1, Extra Heavy-duty
Function: Entry
Lever Style: AVA - Avalon Lever
Cylinder: Less Cylinder
Choose Options:
Hurry! Only left

Falcon TM501L AVA Grade 1 Entry Cylindrical Lock, Less Cylinder, Avalon Lever, Standard Rose, Non-Handed

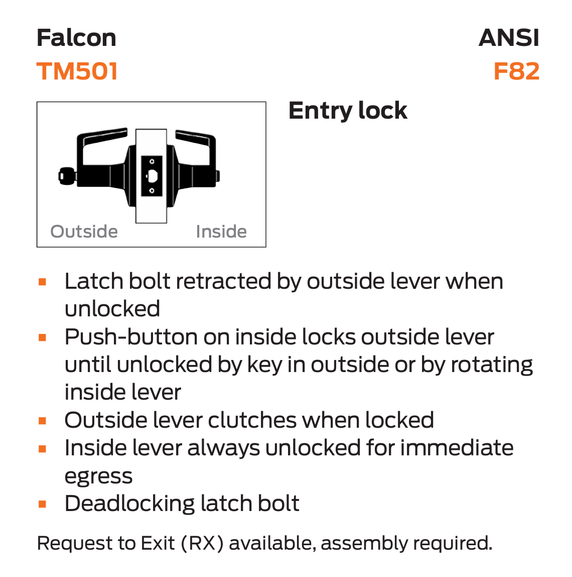

Function: Entry lock - ANSI F82
• Latch bolt retracted by outside lever when unlocked
• Push‑button on inside locks outside lever until unlocked by key in outside or by rotating inside lever
• Outside lever clutches when locked
• Inside lever always unlocked for immediate egress
• Deadlocking latch bolt
Request to Exit (RX) available, assembly required.

Lever Style: Avalon Lever

Series: TM - Grade 1, Extra Heavy-Duty

Specifications
Material: Modular design of zinc and steel components plated for corrosion protection

Door Thickness: 1-3/4" standard

Handing: Non-handed

Rose: Heavy wrought brass, installed over pressure cast rose inserts which are through‑bolted

Backset: Standard: 2-3/4" (70 mm)

Faceplate: Standard: square corner 1-1/8" x 2‑1/4" (29 mm x 57 mm) with retained screws

Latch bolt: Standard: 1" (25mm) housing diameter, 1/2" (13 mm) throw, restoring spring latch or deadlatch with retained screws; stainless steel

Strike: Standard: ANSI curved lip: 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) with retained screws; Dust box available (not standard)

Screws: Furnished with combination screws for use in wood or metal doors and frames

Warranty: Limited warranty, 10 years from date of manufacturer; 3 year electrical, 3 year finish

Certification:
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1 Certified ANSI/BHMA A156.25, Full Indoor Type, Low Voltage Wired

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC‑S104 listed 3‑hour fire door
‑ A label single doors, 4' x 10' and pairs 8' x 10'
‑ Letter F and UL symbol on latch front indicate listing

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)

FL Building Code: Complies with Florida Building Code requirements for hurricanes

Federal: Meets FF‑H‑106C Series 161

Model: Falcon TM501L AVA 626, TM501L AVA 643E, TM501L AVA 605, TM501L AVA 606, TM501L AVA 619, TM501L AVA 613, TM501L AVA 625, TM501L AVA 622
