Falcon TM301 DAN Bath/Bedroom Privacy Lever Lock, Dane Style

Falcon TM301 DAN Grade 1 Bath/Bedroom Privacy Cylindrical Lock, Non-Keyed, Dane Lever, Standard Rose, Non-Handed

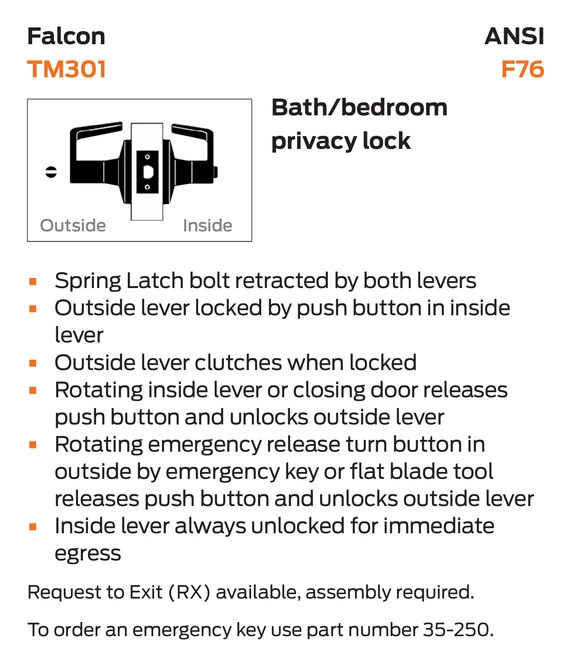

Function: Bath/bedroom privacy lock - ANSI F76
• Spring Latch bolt retracted by both levers
• Outside lever locked by push button in inside lever
• Outside lever clutches when locked
• Rotating inside lever or closing door releases push button and unlocks outside lever
• Rotating emergency release turn button in outside by emergency key or flat blade tool releases push button and unlocks outside lever
• Inside lever always unlocked for immediate egress
Request to Exit (RX) available, assembly required.
To order an emergency key use part number 35‑250.

Lever Style: Dane Lever

Series: TM - Grade 1, Extra Heavy-Duty

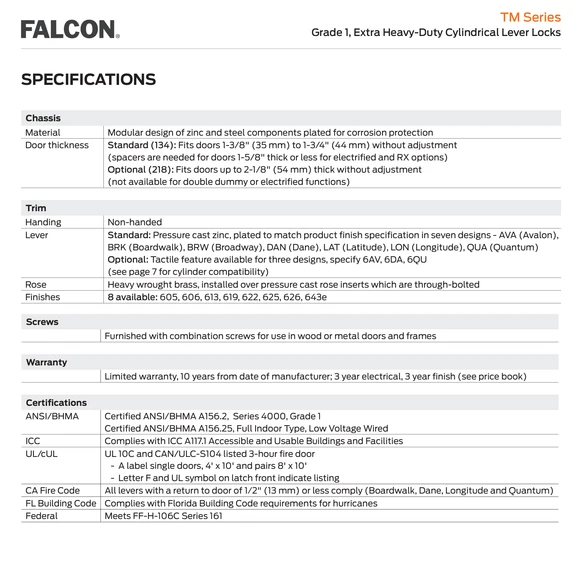

Specifications
Material: Modular design of zinc and steel components plated for corrosion protection

Door Thickness: 1-3/4" standard

Handing: Non-handed

Rose: Heavy wrought brass, installed over pressure cast rose inserts which are through‑bolted

Screws: Furnished with combination screws for use in wood or metal doors and frames

Warranty: Limited warranty, 10 years from date of manufacturer; 3 year electrical, 3 year finish

Certification:
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1 Certified ANSI/BHMA A156.25, Full Indoor Type, Low Voltage Wired

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC‑S104 listed 3‑hour fire door
‑ A label single doors, 4' x 10' and pairs 8' x 10'
‑ Letter F and UL symbol on latch front indicate listing

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)

FL Building Code: Complies with Florida Building Code requirements for hurricanes

Federal: Meets FF‑H‑106C Series 161

Model: Falcon TM301 DAN 626, TM301 DAN 643E, TM301 DAN 605, TM301 DAN 606, TM301 DAN 619, TM301 DAN 613, TM301 DAN 625, TM301 DAN 622
