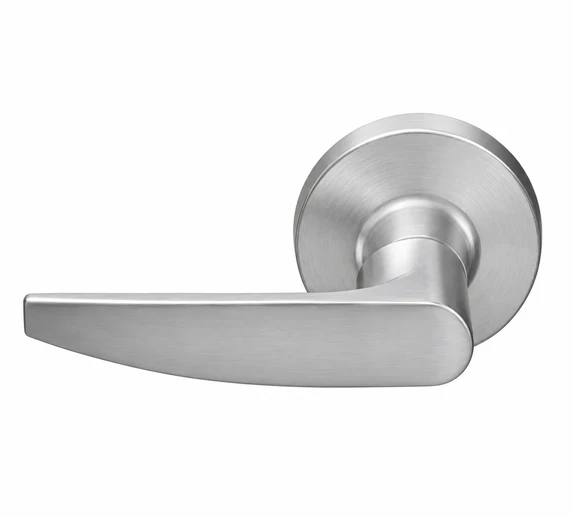

Falcon TM12 AVA Single Dummy Trim, Avalon Style

Falcon TM12 AVA Grade 1 Single Dummy Cylindrical Lock, Non-Keyed, Avalon Lever, Standard Rose, Non-Handed

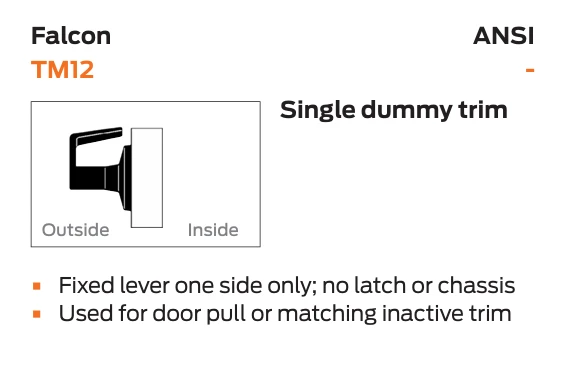

Function: Single dummy trim
• Fixed lever one side only; no latch or chassis
• Used for door pull or matching inactive trim

Lever Style: Avalon Lever

Series: TM - Grade 1, Extra Heavy-Duty

Specifications
Material: Modular design of zinc and steel components plated for corrosion protection

Door Thickness: 1-3/4" standard

Handing: Non-handed

Rose: Heavy wrought brass, installed over pressure cast rose inserts which are through‑bolted

Screws: Furnished with combination screws for use in wood or metal doors and frames

Warranty: Limited warranty, 10 years from date of manufacturer; 3 year electrical, 3 year finish

Certification:
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1 Certified ANSI/BHMA A156.25, Full Indoor Type, Low Voltage Wired

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC‑S104 listed 3‑hour fire door
‑ A label single doors, 4' x 10' and pairs 8' x 10'
‑ Letter F and UL symbol on latch front indicate listing

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)

FL Building Code: Complies with Florida Building Code requirements for hurricanes

Federal: Meets FF‑H‑106C Series 161

Model: Falcon TM12 AVA 626, TM12 AVA 643E, TM12 AVA 605, TM12 AVA 606, TM12 AVA 619, TM12 AVA 613, TM12 AVA 625, TM12 AVA 622
