Falcon T851PD Q Storeroom Electric Cylindrical Lever Lock, Fail Safe, Quantum Style

Falcon T851PD Q Storeroom Electric Cylindrical Lever Lock, Fail Safe

Function Description: Storeroom (electrified-fail safe)
Latch bolt operated by lever from either side except when
outer lever is electrically locked. When outer lever is locked
(inoperable), latch bolt retracted by key in cylinder outside.
Inside lever always free for immediate egress.

Note: Specify 12V (.65 Amps) or 24V (.32 Amps) DC, continuous duty.

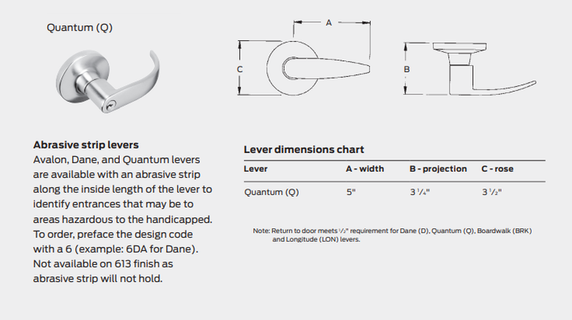

Lever Style: Quantum Lever

Series: T - Grade 1, Extra Heavy-Duty

Door Thickness: 1 3⁄4" to 2 1⁄4" standard.

Backset: 2 3⁄4" standard. 2 3⁄8", 3 3⁄4" and 5" also available

Handing: Non-handed

Latches: 1⁄2" bolt projection, UL listed with square corner latch faceplate 2 1⁄4" x 1 1⁄8" standard.

Strikes: 4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are
stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.

Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle
assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle
assembly completes installation.

Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available
(at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. See SFIC cylinder information on page 8 and T Series cylinder pages for additional options.

Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders. Additional options:
Falcon, Schlage and many Best and Arrow keyways.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

PressureRelease™ outside lever disengages when locked to protect internal mechanisms

Model: Falcon T851PD Q 626, T851PD Q 605, T851PD Q 613, T851PD Q 625
