Falcon T521CP6D D Office Cylindrical Lever Lock w/ Schlage C Keyway, Dane Style

Falcon T521CP6D D Grade 1 Office Cylindrical Lock, Schlage C Keyway, Key in Lever Cylinder, Dane Lever, Standard Rose

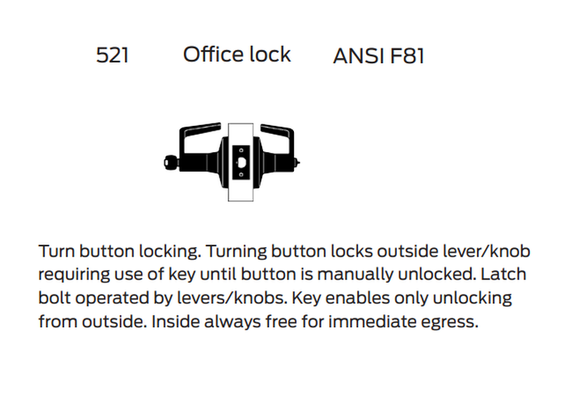

Function: Office - ANSI F81
Turn button locking.
Turning button locks outside lever requiring use of key until button is manually unlocked.
Latch bolt operated by levers.
Key enables only unlocking from outside.
Inside always free for immediate egress.

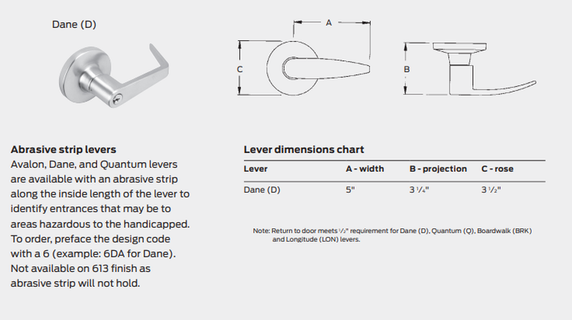

Lever Style: Dane Lever

Series: T Series - Grade 1, Extra Heavy-Duty

Door Thickness: 1-3/4" to 2-1/4" standard.

Backset: 2-3/4" standard. 2-3/8, 3-3/4" and 5" also available

Handing: Non-handed

Latches: 1/2" bolt projection, UL listed with square corner latch faceplate 2-1/4" x 1-1/8" standard.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.

Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: Schlage “C” keyway

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

PressureRelease™ outside lever disengages when locked to protect internal mechanisms

Model: Falcon T521CP6D D 626, T521CP6D D 605, T521CP6D D 613, T521CP6D D 625
