Falcon T511BD A Entry/office Cylindrical Lever Lock, Accepts Small Format IC Core, Avalon Style

Falcon T511BD A Entry/office Cylindrical Lever Lock, Accepts Small Format IC Core

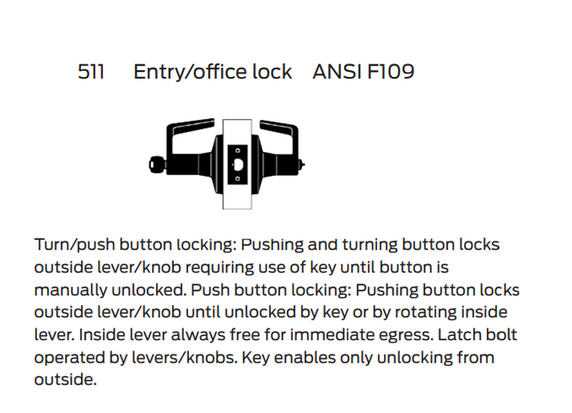

Function Description: Entry/office lock - ANSI NO.F109
Turn/push button locking: Pushing and turning button locks outside lever/knob
requiring use of key until button is manually unlocked. Push button locking:
Pushing button locks outside lever/knob until unlocked by key or by rotating inside
lever. Inside lever always free for immediate egress. Latch bolt operated by levers/knobs.
Key enables only unlocking from outside.

Lever Style: Avalon Lever

Series: T Series - Grade 1, Extra Heavy-Duty

Door Thickness: 1-3/4" to 2-1/4" standard.

Backset: 2-3/4" standard. 2-3/8, 3-3/4" and 5" also available

Handing: Non-handed

Latches: 1/2" bolt projection, UL listed with square corner latch faceplate 2-1/4" x 1-1/8" standard.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.

Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

Cylinder: 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders.

Keyway: “A” keyway standard on SFIC cylinders.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

PressureRelease™ outside lever disengages when locked to protect internal mechanisms

Model: Falcon T511BD A 626, T511BD A 605, T511BD A 613, T511BD Q 625
