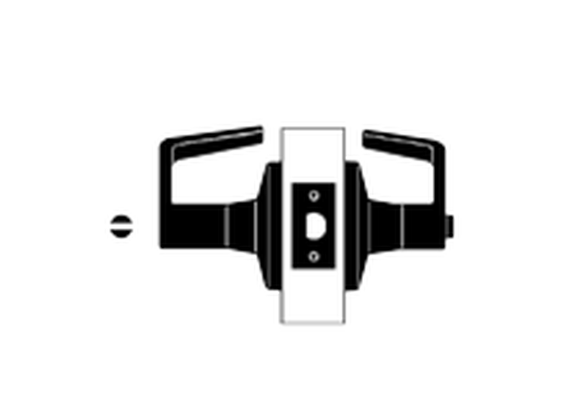

Falcon T301S Q Bath/bedroom privacy Lever Lock, Quantum Style

Falcon T301S Q Bath/bedroom privacy Lever lock

Function Description:Bath/bedroom privacy lock ANSI NO:F76
Latch bolt operated by levers/knobs from either side. Outside locked by push button on inside lever/knob.
Rotating inside lever/knob or closing door releases button. Emergency release tool used on outside unlocks door.
Inside lever/knob always free for immediate egress.

Lever Style: Quantum Lever

Series: T - Grade 1, Extra Heavy-Duty

Door Thickness: 1 3⁄4" to 2 1⁄4" standard.

Handing: Non-handed

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are
stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.

Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle
assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle
assembly completes installation.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

PressureRelease™ outside lever disengages when locked to protect internal mechanisms

Model: Falcon T301S Q 626, T301S Q 605, T301S Q 613, T301S Q 625
