Falcon T12 A Dummy Lever Trim, Avalon Style
IN STOCK
$73.60
Price:
$188.00
Instant Savings
$114.40
Falcon T12 A Dummy Lever Trim
Function Description: Dummy Lever Trim
Single trim, surface-mounted rigid lever/knob.

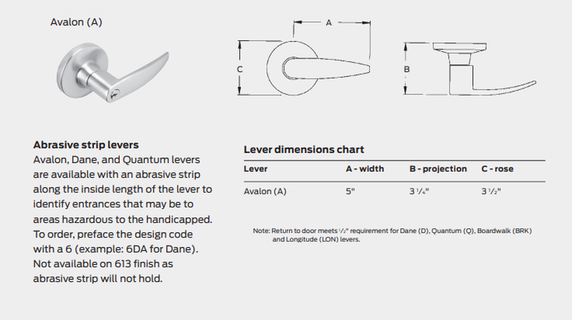

Lever Style: Avalon Lever
Series: T - Grade 1, Extra Heavy-Duty
Door Thickness: 1 3⁄4" to 2 1⁄4" standard.
Handing: Non-handed
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are
stainless steel. compression spring design supports levers, eliminating lever sag and providing years of reliable service.
Attachment: Lock chassis secured to door by threaded mounting nuts. Preassembled outer trim and inner spindle
assembly are through-bolted over chassis using two (2) 10-32 screws. Adding rose and lever to inner spindle
assembly completes installation.
Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.
UL: Listed for 3-hour fire door, A label.
PressureRelease™ outside lever disengages when locked to protect internal mechanisms
Model: Falcon T12 A 626, T12 A 605, T12 A 613, T12 Q 625
Architectural specifications:
• Key-in-lever cylindrical locksets shall be Falcon lock T Series or equal and meet the following requirements:
• All locks shall meet the ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
• Locksets shall be UL Listed (3 hour A Label).
• Locksets shall be provided standard with a clutching lever design. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
• Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be throughbolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner and outer trim shall “bottom out” to prevent door collapse.Roses shall be minimum of 3 1⁄2" diameter.
• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
• Locksets shall adjust to fit door thickness from 1 3⁄4" to 2 1⁄8".
• All locksets shall be non-handed and notrequire field disassembly for re-handing.
• Preparation for door must be non-handed.
• Acceptable manufacturer: Falcon lock
