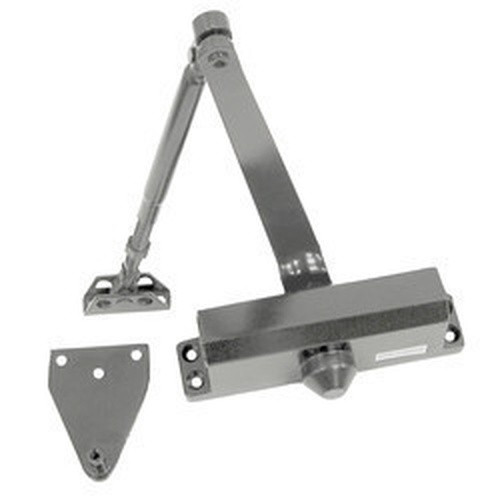

Falcon SC91A HW/PA DKB Door Closer, Hold Open Arm with Parallel Arm Shoe, Dark Bronze Finish

Falcon SC91A HW/PA DKB Door Closer, Hold Open Arm with Parallel Arm Shoe, Dark Bronze Finish

Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration. Available only on
SC91A closers.

Standard features:

Single piece cast aluminum body

Size: size 1 only

Separate adjustable general speed and latch speed

SC90A closer mounts hinge side, top jamb, or parallel arm when the RW/PA arm is specified

Non-handed for left or right swinging doors

Heat-treated pinion and steel piston

SC93A/94A comes standard with a universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws

Meets ANSI A117.1

Listed ANSI/BHMA A156.4, grade 3

Comes standard with adjustable backcheck; optional no backcheck available

SC93A/94A is UL listed and compliant to UL10C and UBC 7-2 (1997)

10-year warranty

Offered in aluminum and dark bronze finish

Listings and ratings
The Falcon SC93A/94A Series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally
the SC91A closers are designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC90A Series is listed
ANSI/BHMA A156.4, Grade 3.
