Falcon SC81A DSHO Door Closer, w/ Hold Open Dead Stop Parallel Arm

Falcon SC81A DSHO Door Closer, w/ Hold Open Dead Stop Parallel Arm

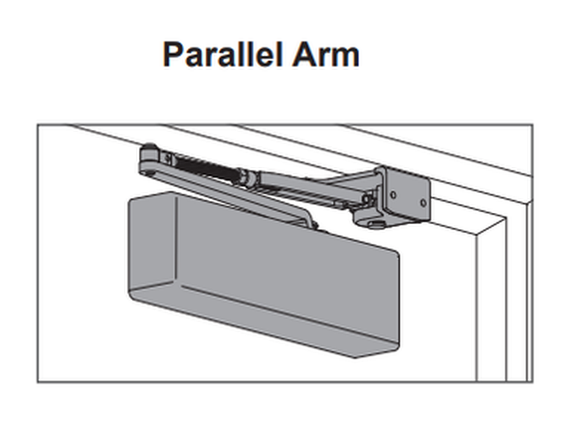

Dead stop hold-open Arm, non-handed, stamped, heavy duty, hold-open parallel arm includes a
positive mechanical stop and nonadjustable forearm assembly for high volume traffic or potentially abusive
installation conditions. Also includes a manually selective hold-open function.

Cover:

SLIM – Slim Cover. Cover will enclose the cylinder body with the exception of the unused pinion shaft.
A shaft cover will be included to cover the unused pinion shaft.

FULL – Full Cover. (optional) Cover will enclose the entire cylinder body, including the unused pinion shaft.

Standard features:

Single piece cast aluminum body

Fully adjustable sizes 1-6

Separate adjustable general speed, latch speed and backcheck

Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified

Non-handed for left or right swinging doors

1 1⁄4" diameter heat treated steel piston

Heat-treated pinion

Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming, and tapping screws

Staked valves

Meets ANSI A117.1

ANSI/BHMA A156.4, grade 1

UL listed and compliant to UL10C and UBC 7-2 (1997)

Cover is UL approved for use in fire rated assemblies

10-year warranty

Retrofittable to Norton 8000 hole pattern

Listings and ratings

The Falcon SC81A is UL listed and compliant to UL10C and UBC 7-2 (1997). Additionally, the SC81A is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81A is rated ANSI/BHMA A156.4, Grade 1.
