Falcon SC71A SS Door Closer, w/ Spring-n-Stop Parallel Arm

Falcon SC71A SS Door Closer, w/ Spring-n-Stop Parallel Arm

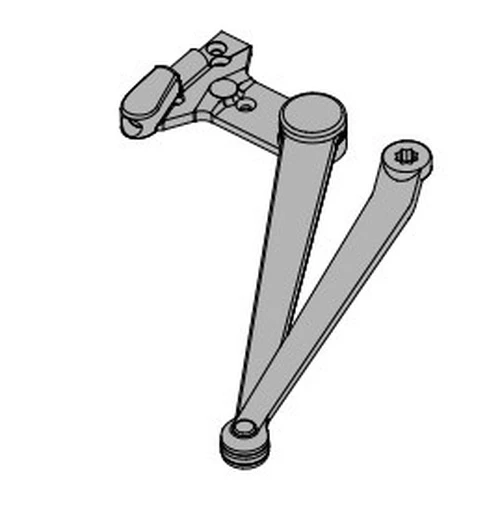

SS – Spring-n-stop with Parallel Arm Bracket. Non-handed, extra heavy-duty, forged parallel arm includes an integral
spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Cover - SC70A-72 Standard, non-handed, full plastic coverencloses the closer body.

Standard features

• Fully adjustable sizes 1-6
• Separate adjustable general speed, latch speed and backcheck
• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified
•  Non-handed for left or right swinging doors
• 1 1⁄2" diameter heat treated steel piston
• Double heat-treated pinion
• Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws
• Staked valves
• Meets ANSI A117.1
• Listed ANSI/BHMA A156.4, grade 1
• UL listed and compliant to UL10C and UBC 7-2 (1997)
• Fast and easy installation
• 10-year warranty
• Available in aluminum, brass, dark bronze, and matte black

Listings and ratings

The Falcon SC71A is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71A is
rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1 BHMA A156.4, Grade 1.
