Falcon SC61A RW/PA AL Door Closer - Regular Arm with parallel arm shoe - Aluminum

Falcon SC61A RWPA AL Door Closer - Regular Arm with parallel arm shoe - Aluminum

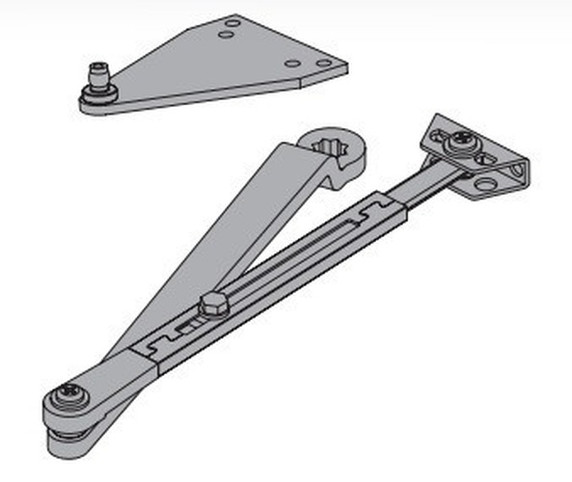

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

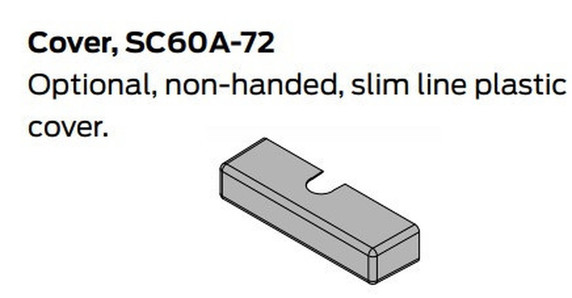

SLIM (Optional) – Slim Cover. Cover will enclose the cylinder body with the exception of the unused pinion shaft. A shaft cover will be included to cover the unused pinion shaft.

Standard features

• Single piece cast aluminum body


• Fully adjustable sizes 1-5


• Separate adjustable general speed, latch speed and backcheck


• Closer mounts hinge side, top jamb or parallel arm
  when either the RW/PA or HW/PA arm is specified


• Non-handed for left or right swinging doors


• Heat-treated pinion and steel piston


• Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming, and tapping screws


• Staked valves


• Meets ANSI A117.1


• ANSI/BHMA A156.4, grade 1


• UL listed and compliant to UL10C and UBC 7-2 (1997)


• Cover is UL approved for use in fire rated assemblies


• 10-year warranty


• Retrofittable to Norton 1600 hole patternListings and ratings

  The Falcon SC60A is UL listed and compliant to UL10C and UBC 7-2 (1997). Additionally, the SC61A is designed to
  meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60A Series is rated ANSI/BHMA A156.4, Grade 1.
