Falcon MA621P DG Apartment Corridor Mortise Lock

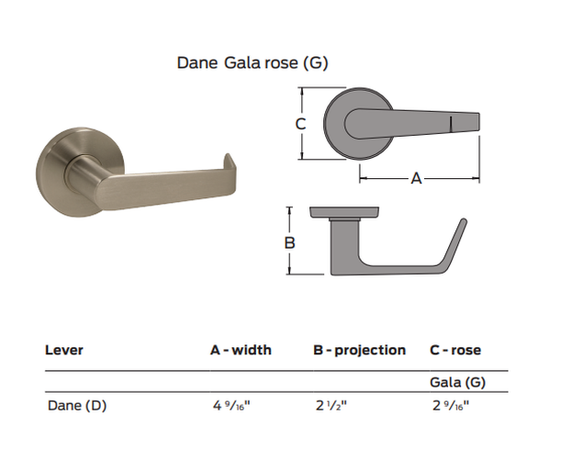

Falcon MA621P DG Apartment Corridor Mortise Lock, w/ Dane Lever and Gala Rose

Functions: MA621 ANSI No: F08/F10 - Apartment corridor lock with button lockout
Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face.
Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlockedby button on face.
Inside knob/lever always free for immediate egress.

Product specifications

ANSI/BHMA: Certified ANSI/BHMA 156.13, Series 1000, Grade 1. UL: Listed 3-hour fire door, A label.

UL: Listed 3-hour fire door, A label.

Door thickness: Standard offering only accepts door thicknesses of 1 3⁄4" - 1 7⁄8".

Backset: 2 3⁄4" only.

Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.

Hubs: Hardened steel.

Handing: Right hand is standard; left hand optional. Reversible in the field.

Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6
chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin
Small Format Interchangeable Core (SFIC) cylinders. Mortise and cylinder housings and plugs machined from solid brass.
Springs are phosphor bronze. Two nickel silver keys furnished standard. Hotel function cylinders available.

Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders.

Bind resistant trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment.
Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection.

Dead bolt: 1" throw, stainless steel with two 3⁄16" diameter hardened steel, free-turning, saw-resistant roller.

Faceplates: (armored front) 11⁄4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge
steel with stabilizing ribs.

Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Model: Falcon MA621P DG 626, MA621P DG 605, MA621P DG 613, MA621P DG 630
