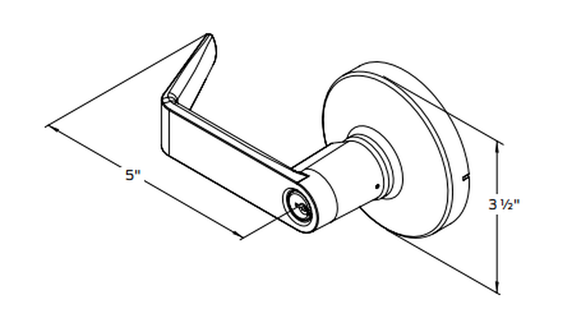

Falcon K581PD D Grade 1 Storeroom Cylindrical Lever Lock

Falcon K581PD D Grade 1 Storeroom Cylindrical Lever Lock
Function: Storeroom - ANSI no. F86

Deadlocking latch bolt by lever inside or key outside. Outside lever is inoperable.
Inside lever always free.

Door thickness: Adjustable 1 3⁄8" to 2 1⁄4". Comes set for a 1 3⁄4" thick door standard.

Backset: 2 3⁄4" standard. 2 3⁄8" optional.

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.
Springs are stainless steel.

Attachment: Lock chassis secured to door by threaded mounting screws. Completely preassembled outer trim
and inner spindle assembly are through-bolted both through and over chassis using four (4) screws to provide
strength and resistance to loosening. Adding rose and lever to inner spindle assembly completes installation.

Handing: Locks are non-handed.

Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no
cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin small format interchangeable core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways: “G” keyway standard on conventional cylinders.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted
through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Latches: 2 1⁄4" x 1 1⁄8" square corner with 2 3⁄4" backset comes standard; 2 3⁄8" backset option available if specified. Radius corners for both 2 3⁄8" and 2 3⁄4" backsets available if specified. All latches are UL listed and conform to both
beveled and non-beveled doors.

Strikes: 4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: UL10C 3 hour A label.

Screws: Furnished with combination screws for use in wood or metal doors and frames

Limited Warranty: 10 Year Warranty

Model: Falcon K581PD D 626, K581PD Q 613
