Falcon K101S Q Grade 1 Passage/closet Cylindrical Lever Lock
In Stock
$111.90
Price:
$307.00
Instant Savings
$195.10

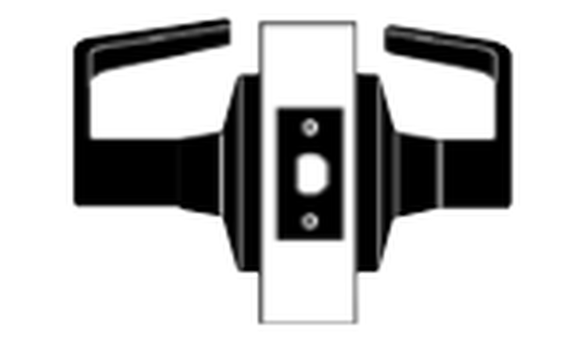

Falcon K101S Q Grade 1 Passage/closet Cylindrical Lever Lock
Function: Passage/closet - ANSI no. F75
Latch bolt by levers at all times.
Door thickness: Adjustable 1 3⁄8" to 2 1⁄4". Comes set for a 1 3⁄4" thick door standard.
Backset: 2 3⁄4" standard. 2 3⁄8" optional.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.
Springs are stainless steel.
Attachment: Lock chassis secured to door by threaded mounting screws. Completely preassembled outer trim
and inner spindle assembly are through-bolted both through and over chassis using four (4) screws to provide
strength and resistance to loosening. Adding rose and lever to inner spindle assembly completes installation.
Handing: Locks are non-handed.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no
cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin small format interchangeable core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available
with some optional keyways.
Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted
through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
Latches: 2 1⁄4" x 1 1⁄8" square corner with 2 3⁄4" backset comes standard; 2 3⁄8" backset option available if specified. Radius corners for both 2 3⁄8" and 2 3⁄4" backsets available if specified. All latches are UL listed and conform to both
beveled and non-beveled doors.
Strikes: 4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
UL: UL10C 3 hour A label.
Screws: Furnished with combination screws for use in wood or metal doors and frames
Limited Warranty: 10 Year Warranty
Model: Falcon K101S Q 626, K101S Q 613
Architectural specifications:
• Key-in-lever cylindrical locksets shall be Falcon lock T Series or equal and meet the following requirements:
• All locks shall meet the ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
• Locksets shall be UL Listed (3 hour A Label).
• Locksets shall be provided standard with a clutching lever design. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
• Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be throughbolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner and outer trim shall “bottom out” to prevent door collapse.Roses shall be minimum of 3 1⁄2" diameter.
• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
• Locksets shall adjust to fit door thickness from 1 3⁄4" to 2 1⁄8".
• All locksets shall be non-handed and notrequire field disassembly for re-handing.
• Preparation for door must be non-handed.
• Acceptable manufacturer: Falcon lock
