Falcon F-25-V EO Fire Rated Surface Vertical Rod Exit Device, Exit Only

Falcon 25-V-EO Fire Rated Surface Vertical Rod Heavy Duty Exit Device 25 Series, Exit Only

Specifications

Device functions: EO - Exit Only

Device lengths:

3' For Doors Up to 36" Wide - Min door opening width: 2' 7 1⁄8"
4' For Doors Up to 48" Wide - Min door opening width: 3' 1 1⁄8"

Dogging Options: Less Dogging

Door Stile: 3 1⁄2"

Handing: Field reversible

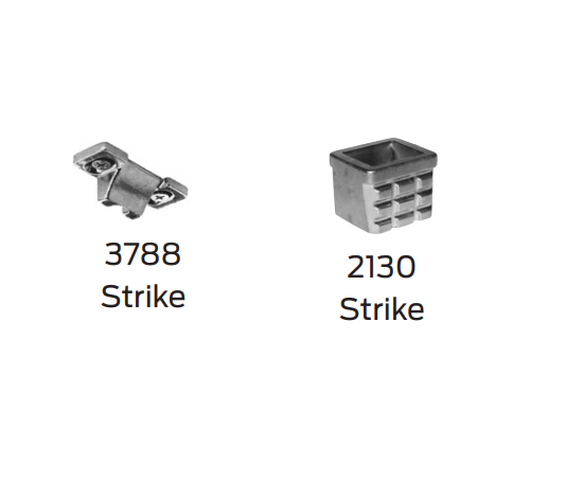

Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor

Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.

Deadlocking latchbolt: Standard in top latch.

Latch retention hold: Standard with top latch.

Projections: 2 3⁄4" maximum.

Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.

Application: Offices, Banks, Assisted Living Facilities, Retail Stores and Other Commercial Buildings Have Constant Traffic

ANSI: Certified ANSI A156.3-2001 grade 1 standards.

Finishes: US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630);
US28 (628), 313AN (710)

Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users,
or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative
to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

The MEL option is available on panic and fire rated devices. Because fire exit hardware must be self latching, an automatic
fire alarm system must be incorporated to drop power to fire rated MEL devices in case of fire.

Device Monitoring
RX Monitoring

The RX feature monitors the depression of the touch bar or crossbar. Activation of the switch indicates use of a door
or that the door is in the dogged condition. This feature is especially useful when used to activate or shunt magnetic
locking systems.

Features and benefits

• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Pushbar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering

MEL system requirements

The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple
components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.

The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series
Option Boards - 900-2RS, 900-4R and 900-4RL

A power transfer (EPT, electrified hinge, or door loop) is required and sold separately

Model: Falcon F-25-V-EO 3 28, F-25-V-EO 4 28, F-25-V-EO 3 26D, F-25-V-EO 4 26D, F-25-V-EO 3 32D, F-25-V-EO 4 32D, F-25-V-EO 3 3, F-25-V-EO 4 3, F-25-V-EO 3 4, F-25-V-EO 4 4, F-25-V-EO 3 10, F-25-V-EO 4 10, F-25-V-EO 3 26, F-25-V-EO 4 26, F-25-V-EO 3 313AN, F-25-V-EO 4 313AN
