Falcon D131P Double Cylinder Deadbolt

Falcon D131P Grade 1 Double Cylinder Deadbolt

Function: D131 - Double Cylinder - ANSI E2141
• Outside Function: Deadbolt thrown or retracted by key from either side.
• Inside Function: Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.

Specifications
Deadbolt: 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1” throw

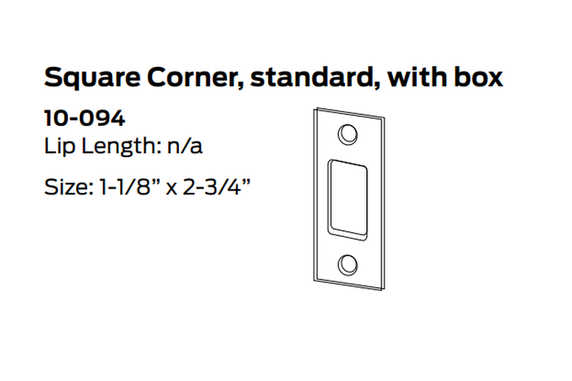

Strike: 1-1/8” x 2-3/4”, lipless, with box

Cylinder: 6-Pin, Solid brass, Keyed 5-Pin, Falcon G keyway, Keyed different (KD)

Keys: Two, Nickel silver cut keys per lock, Falcon G keyway

Handing: Locks are non-handed.

Reinforcement: Metal dust box reinforcer with three - 3” screws

Trim Ring: 1” Wrought brass or bronze, reinforced with security insert

Door Range: 1-3/8” - 1-3/4” standard

Finishes: 605, 606, 612, 625, 626

Certifications
BHMA-ANSI A156.5, 2001, Grade 1 auxiliary lock, Available UL
Listed for 3-Hour fire door

Model: Falcon D131P 626, D131P 605, D131P 606, D131P 613, D131P 625
