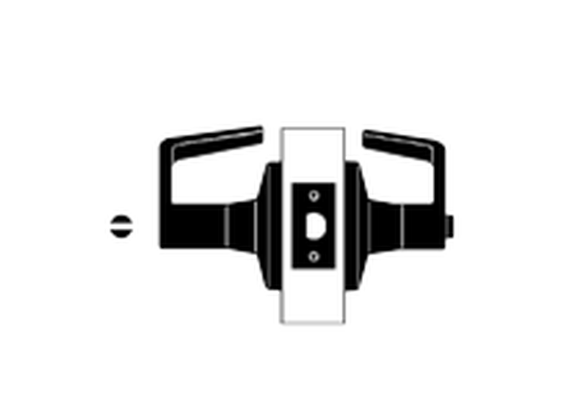

Falcon B301S Q Bath/bedroom privacy Lever lock, Quantum Style

Falcon B301S Q Bath/bedroom privacy Lever lock

Function Description:Bath/bedroom privacy lock ANSI NO:F76
Latch bolt operated by levers/knobs from either side. Outside locked by push button on inside lever/knob.
Rotating inside lever/knob or closing door releases button. Emergency release tool used on outside unlocks door.
Inside lever/knob always free for immediate egress.

Lever Style: Quantum Lever

Series: B - Grade 2, Medium-Duty

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Door thickness: 1 3⁄8" to 2" standard.

Backset: 2 3⁄4" standard. 2 3⁄8" and 5" also available

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and
dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel
rose insert inside and thread directly into the outer rose mounting assembly.

Handing: Locks are non-handed.

Trim: Roses are 3 1⁄2" diameter, heavy wrought brass or bronze,
installed over steel rose inserts which are through-bolted through door.
Levers are pressure cast zinc (solid levers no inserts) material finished to match mating parts.

Latches: 1⁄2" bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting
fronts to accommodate beveled or flat doors. 2 3⁄8" backset with 2 1⁄4" x 1" latchfaces,
2 3⁄4" backset with 2 1⁄4" x 1 1⁄8" latchfaces. Deadlocking latches have a solid round bar stock
DL bar preventing latch jamming and/or lock outs.

Strikes: 4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws: Furnished with combination screws for
use in wood or metal doors and frames.

Model: Falcon B301S Q 626, B301S Q 605, B301S Q 613, B301S Q 625
