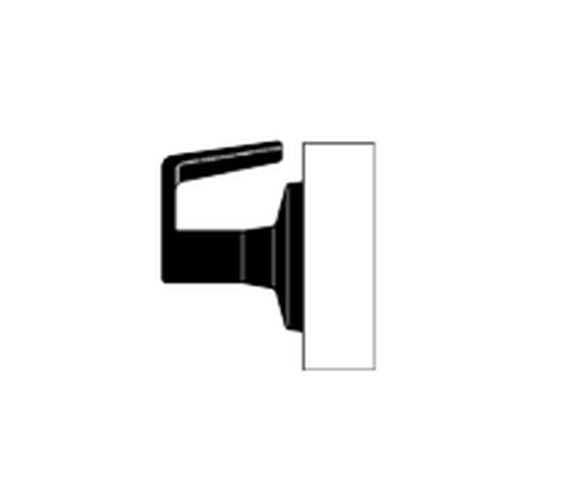

Falcon B12 Q Grade 2 Dummy Lever Trim, Quantum Style

Falcon B12 Q Dummy Lever Trim

Function Description: Dummy Lever Trim
Single trim, surface-mounted rigid lever.

Lever Style: Quantum Lever

Series: B - Grade 2, Medium-Duty

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Door thickness: 1 3⁄8" to 2" standard.

Backset: 2 3⁄4" standard. 2 3⁄8" and 5" also available

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated
for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel
rose insert inside and thread directly into the outer rose mounting assembly.

Handing: Locks are non-handed.

Screws: Furnished with combination screws for
use in wood or metal doors and frames.

Model: Falcon B12 Q 626, B12 Q 605, B12 Q 613, B12 Q 625
