Falcon 1990EO 44IN Concealed Vertical Rod Crossbar Exit Device, For doors up to 44" wide

Falcon 1990EO 44IN Concealed Vertical Rod Crossbar Exit Device, Exit Only, For doors up to 44" wide

Specifications

Hand: Field reversible, non handed.

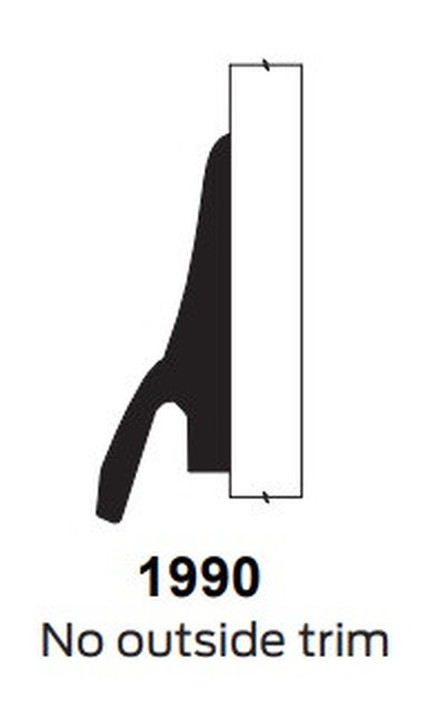

Functions: See trim selection chart on this page.

Finishes: P28, P13, P35, US26D.

Strikes: PB48 top.

Latches: Hex bottom latch (standard), RL - rod bottom latch,
PL - Pullman bottom latch, ES - electric strike top latch
(optional). Device needs to be less bottom rod (LBR).

Dogging feature: Hex dogging standard.

Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)

Sizes: Field adjustable width, 41" crossbar standard extra length
cross bar available.

Doors: 1 3⁄4" thick metal doors.

Projections: 4 3⁄8" extended, 2 1⁄2" depressed.

Stile: 1 3⁄4" minimum.

Fasteners: All mounting screws are concealed.

ANSI: Certified ANSI A156.3 grade 1 standards.

UL: UL305 listed.

Vertical rods: 7' standard, extension rod kits available up to 10'.
