Kawneer Parts and Accessories
Kawneer door parts keep Kawneer aluminum entrances in service without replacing the whole device. Find parts for the 1686 concealed rod and 1786 rim exit devices, such as the KW133636 dogging device package and KW133631 center rod assembly, Paneline exit device parts, Falcon 1690/1990 rods and strikes, Arch Classic push/pull packages and closer arm packages.
Find your Kawneer part: device, KW number and hand
Identify the exit device first, then the KW part number. Kawneer parts are specific to the device they belong to, and the catalog groups them that way: 1686 concealed vertical rod devices, 1786 rim devices, Paneline exit devices and Falcon 1690/1990 devices supplied on Kawneer doors. Many parts are handed, such as the 1686 latch mechanism packages for right-handed (KW133632) and left-handed (KW133629) doors, and some carry a finish suffix, such as -17 for clear aluminum or -29 for black.
Kawneer parts by device
| Device or use | Parts in the catalog (KW numbers) | Notes from the listing |
|---|---|---|

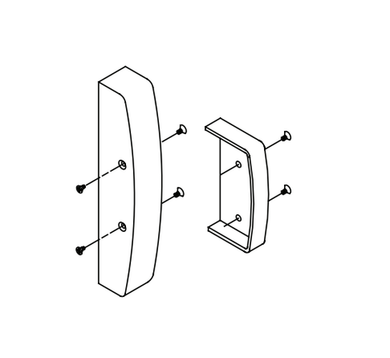

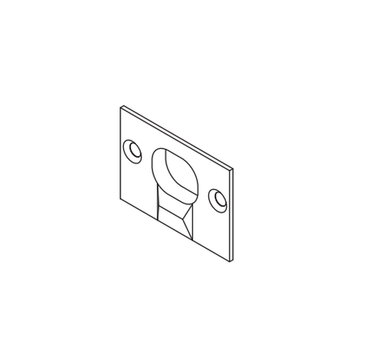

| 1686 concealed rod exit device | KW133629 / KW133632 latch mechanism, KW133631 center rod assembly, KW133626 cylinder mounting pad, KW133646 hump back strike, KW133635-29 housing cover / hinge end cap | Latch packages handed left or right; -29 black finish |
| 1786 rim exit device | KW133633 latch mechanism, KW133637 housing cover / hinge end cap, KW133588 frame strike, KW133587 removable mullion | Mullion for pairs of doors |
| 1686 and 1786 | KW133636 dogging device package, KW133649 manual to MEL kit, KW133650 solenoid to MEL kit | MEL = motor electric latch retraction |

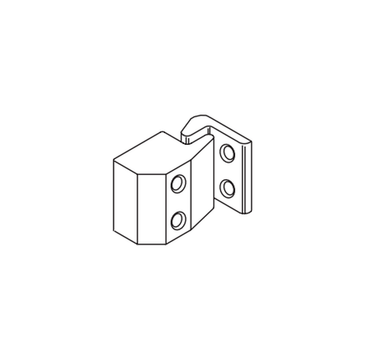

| Rim devices, pairs | KW133487 removable mullion up to 8' door, KW033600-17 mullion stabilizer | Clear aluminum stabilizer |
| Paneline exit device | KW033118 push panel dress cap, KW233494 / KW233495 / KW233496-17 pivot stile filler plates (36", 42", 48"), KW233457-17 lock side filler plate (48"), KW033435 Allen dogging key | Filler plates by door width |
| Falcon 1690 / 1990 on Kawneer doors | KW033466 upper rod (7' door), KW033530 lower rod, KW033920 top strike, KW133469 loose parts package (1690) | Kawneer packages for Falcon devices |

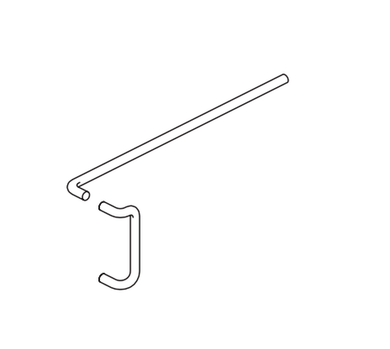

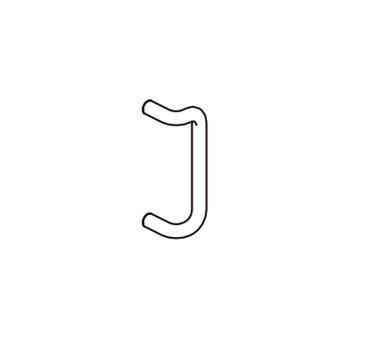

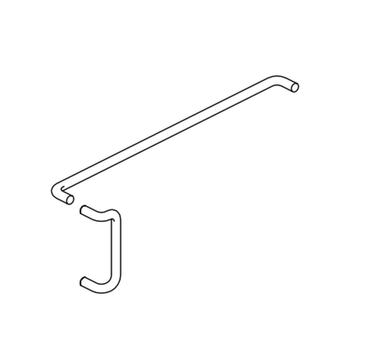

| Push / pull | Arch Classic KW137700 to KW137708, pull-only KW137730 and KW137731-14 | CO-9 or CO-12 pull; 3'0", 3'6", variable up to 4' |

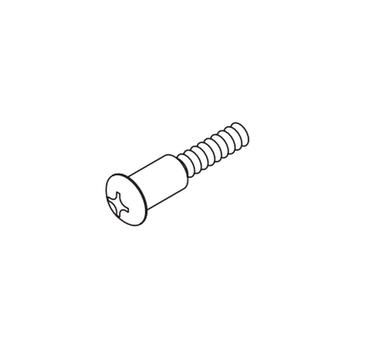

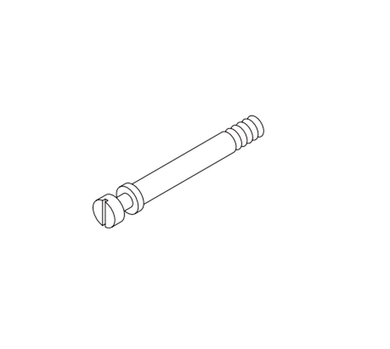

| Closer arms and fasteners | KW050719 offset arm (single acting), KW050702 side load arm (double acting), KW029211 truss head screw, KW029221 stud and KW029223 spacer (Insulclad door) | For Kawneer door closers and doors |
Kawneer 1686 parts list
The 1686 is the Kawneer concealed vertical rod exit device, and its common replacement parts are the latch mechanism package, the center rod assembly, the hump back strike, the cylinder mounting pad and the housing cover and hinge end cap package. Order the latch mechanism by hand: KW133632 is listed for right-handed doors and KW133629 for left-handed doors. The dogging device package KW133636 fits both the 1686 and the 1786.
Paneline exit device parts
Paneline is a Kawneer push panel exit device, and its parts include the push panel dress cap, filler plates for the pivot stile in 36", 42" and 48" widths, a 48" lock side filler plate and the Allen dogging key. Measure the door width to pick the right filler plate, and use the KW033435 key to dog the device.
Converting a Kawneer exit device to MEL
An existing Kawneer 1686 or 1786 device can be converted to motor electric latch retraction with a kit instead of a new device. The KW133649 converts a manual exit device to MEL and the KW133650 converts a solenoid exit device to MEL. Electric latch retraction lets a card reader or automatic operator unlatch the door, and it needs power through the frame.
Kawneer parts manual and diagrams
For exploded diagrams with part numbers, use the Kawneer parts manual (PDF) that we host on our product pages. Find the device, note the KW number from the diagram and search it in this category. If you cannot find a part, send us the number.
Most requested Kawneer parts
The Kawneer parts our customers look up most often right now:
- Kawneer KW137700 Arch Classic CO-9 Pull / CP-II Push Package
- Kawneer KW133636 Dogging Device Package for 1686/1786
- Kawneer KW133631 Center Rod Assembly Package for 1686

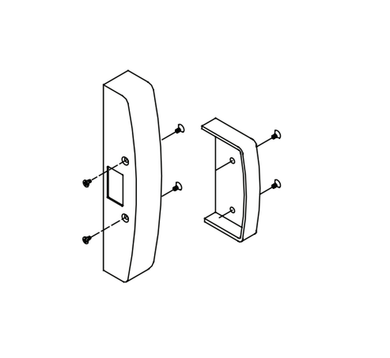

- Kawneer KW133637 Housing Cover / Hinge End Cap Package for 1786
- Kawneer KW133649 Manual Exit to MEL Conversion
Related categories: Kawneer door hardware, Kawneer exit devices and storefront bolts and latches.
What to have ready when ordering Kawneer parts
- KW number from the old part or the parts manual.
- Device: 1686, 1786, Paneline or Falcon 1690/1990.
- Hand of the door for latch mechanisms and handed devices.
- Door width for filler plates and door height for rods.
- Finish suffix, such as -17 clear aluminum or -29 black.
Servicing several entrances? Request a quote, and schools and agencies can submit a government or school PO. Orders placed before 3:00 p.m. ET on business days ship the same day after card approval, and ground shipping is free on orders of $450+. Call 718-814-6300 with your KW number and we will confirm the match.
The tables and selection notes on this page are compiled by National Lock Supply from the Kawneer parts manual, catalog and product listings. Last reviewed: November 2026.
Frequently Asked Questions
What replacement parts are available for Kawneer doors?
The catalog has latch mechanisms, rods, strikes, housings, dogging packages and MEL conversion kits for Kawneer exit devices, Paneline filler plates and dress caps, Falcon 1690/1990 rods and strikes, Arch Classic push/pull packages, closer arm packages and door fasteners. Each is listed by KW number.
How do I fix a Kawneer push bar that will not stay dogged?
If the device will not hold the latch retracted, the dogging mechanism or key is usually the issue. The KW133636 dogging device package is listed for 1686 and 1786 devices and includes the dogging device latch, dogging key and fasteners. Paneline devices use the KW033435 Allen dogging key.
Are Kawneer parts handed?
Some are. Latch mechanism packages for the 1686 are listed for right-handed (KW133632) and left-handed (KW133629) doors, and complete devices are listed as RH/LHR or LH/RHR. Parts such as the dogging package and center rod are not listed as handed.
What are the KW033466 and KW033530 rods for?
They are Kawneer upper and lower rod assemblies for Falcon 1690 and 1990 exit devices used on Kawneer doors. The KW033466 upper rod is listed for a 7' door. The matching KW033920 top strike package and the KW133469 loose parts package for the 1690 are also listed.
