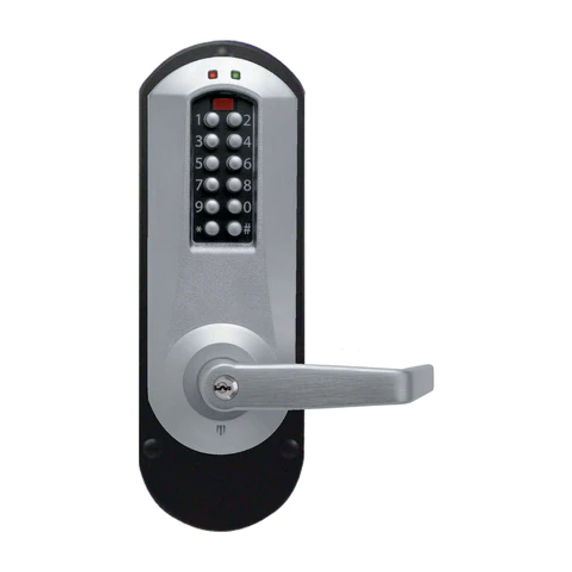

Dormakaba E-Plex E5010 Electronic Pushbutton Exit Trim w/ Winston Lever

Dormakaba E5010 E-Plex 5000 Exit Trim, Winston Lever, 100 Access Codes, 3,000 Audit Events, Exit Device not Supplied

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Operation Modes
• PIN access
• Lockout
• Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Features
Locking Device: Exit Trim

Access Control: Electronic pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys, and cards

Number of Codes: 100 access codes per door (upgrade to 300 via software); over 100 million possible code combinations

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events

Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software—simplifies management of doors and users as facility’s number of users and access points grow

Authority Levels
Five different levels allow who has access to specific lock functions, including:
Master Level: Performs all set-up and programming functions
Manager Level: Administers common programming functions
Access User Level: Entry granted with valid PIN
Service Level: Codes for single event or single day access, programmable in advance
Maintenance Level: No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters
Code length: Adjustable to accept 4 to 8 digits
Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Relock time: Adjustable from 2 to 20 seconds

Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

Specifications
Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Handing: Non-handed

Backsets: Exit Trim - Varies by exit device type

Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable cores

Universal Key-In-Lever Cylinders
Includes Kaba 1599 6-pin cylinder (prepped to Kaba 90 or Schlage "C" Keyway, keyed different) and tailpieces for compatibility with:
Abloy 5277 Kaba Gemini 4730
Abloy 5477 Kaba Peaks 1099
Arrow C100 Marks
ASSA 65611 Medeco 20W200H1
ASSA 65691 Sargent 10 Line
Corbin Russwin 2000-03 Schlage 23-001
Kaba 1539 Schlage Primus 20-760
Kaba 1599

Interchangeable Cores: Small format Best and equivalents (6 or 7-pin length)

Removable Cores: Large format ASSA, Medeco, Yale, Abloy (5 or 6-pin), Corbin Russwin, Schlage, and Sargent

(Interchangeable/Removable core cylinders are not included with the lock)

Minimum Stile Recommended: 5" (127 mm)

Door Preparation: Exit Trim: ASA 161 Easily installs on door preparation with two additional through bore holes (wood or metal doors)

Door Thickness: 1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

Items Supplied: Exit Trim - Lock assembly, installation manual, template, quick reference guide, operations manual, and required hardware. Exit Device and mounting hardware not included

Additional Items: Exit Trim - Universal Kaba 1599 6-pin cylinder with tailpiece, four additional tailpieces, nickel silver keys, and spare cylinder retainer (Supplied with Key-in-Lever Cylinder Model Only)

Certification and Testing
Accessibility Standard: Americans with Disabilities Act (ADA)

Durability: Exit Trim—ANSI/BHMA A156.3, Grade 1 Certification

Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors

Environmental
Indoor/Outdoor Approved
Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Finishes
Satin Chrome 26D (626) housings and levers
Black (676) housings with Satin Chrome (626) levers and accents
Bright Brass 03 (605) housings and levers
Satin Brass 04 (606) housings and levers
Bright Chrome 026 (625) housings and levers
Dark Bronze (744–simulates 10B/613) housings and leverswith Satin Brass (606) pushbuttons

Model: Dormakaba E5010XSWL-626-41, E5010XSWL-606-41, E5010XSWL-605-41, E5010XSWL-744-41, E5010BWL-626-41, E5010BWL-606-41, E5010BWL-605-41, E5010BWL-744-41, E5010SWL-626-41, E5010SWL-606-41, E5010SWL-605-41, E5010SWL-744-41, E5010MWL-626-41, E5010MWL-606-41, E5010MWL-605-41, E5010MWL-744-41, E5010XKWL-626-41, E5010XKWL-606-41, E5010XKWL-605-41, E5010XKWL-744-41, E5010CWL-626-41, E5010CWL-606-41, E5010CWL-605-41, E5010CWL-744-41, E5010RWL-626-41, E5010RWL-606-41, E5010RWL-605-41, E5010RWL-744-41
