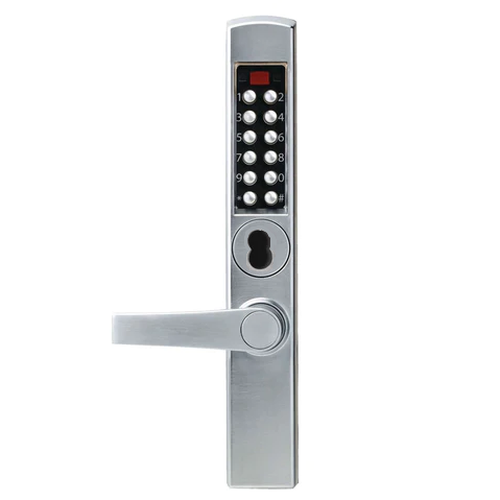

Dormakaba E-Plex E3265BNL Narrow Stile Lever Trim for Mortise Deadlatch w/ SFIC Prep, Less Core

Dormakaba E3265BNL E-Plex 3000 for Adams Rite Latches, 3,000 Access Codes, 30,000 Audit Events, 6/7-Pin SFIC Prep, Less Core, Lever

The E-Plex 3200 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 3,000 Access Codes and 30,000 Audit Events.

Features
Locking Devices: Retrofits inside trim for Adams Rite locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, and 8400 Series (not included). Adapter Kit available for various manufacturers’narrow stile Exit Devices.

Operation Modes
• Access (via Credential)
• Lockout
• Passage—can be toggled on/off or pre-programmed to re-lock manually or via software
• Scheduled Access

Access Control: Electronic PIN/Card lock for narrow stile aluminum glass doors—eliminates problems and costs associated with issuing, controlling, and collecting keys. Provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)—E-Plex 3000 and 3200.

Number of Codes: 3,000 Access Codes with required software

Programming: Locks are programmed via required E-Plex Enterprise Software (not included)—provides easy management of doors and users. Upgradeable to wireless

Scheduling: E-Plex 3200, 3600, and 3700 Access Schedules—Up to 16 different access schedules may be programmed into reader. Holiday/Vacation—Up to 32 different holiday/vacation blocks may be programmed into reader.

User Parameters
Code length: Adjustable to accept 4 to 8 digits

Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds

Relock time: Adjustable from 2 to 20 seconds

Battery Operation: Batteries located in tamper-proof base of outside housing. Four AA Alkaline batteries provide up to 180,000 cycles for E-Plex 3000/3200. Lock data is maintained if batteries fail. Warning lights notify low battery status.

Ease of Installation: No wire installation—eliminates wiring to or through the door—no risk of pinched wires.

Specifications
Construction: Heavy duty, electronic lockset with clutch mechanism and built-in contactless RFID reader.

Handing: Cylindrical lock is dual handed. Field reversible levers.

Levers (inside & outside): ADA compliant, outside lever free to rotate upward and downward in locked mode. Lever clearance (space from end of lever to door): Long Lever: ⅜” (9.5mm lever clearance)

Key Override: Mortise, LFIC Housing, Best and Equivalents (6-pin length); Cylinder not included

Latch: 1/2" (13 mm) Deadlatch

Door Thickness: From 1 ⅜” to 2 ½” (35mm to 66mm).

Standard Backset: 2 ¾” (70mm) backset

Locking option: Cylindrical latch (2 ¾” backset).

Housing Construction: Cast zinc alloy (outside housing, levers, and thumbturn), stainless steel inside housing.

Batteries: Alkaline batteries (4 AA). Low battery indicator in software and on lock. Battery life of 1.5 years* based on
estimated usage.

Programming & Audit Trail: Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires M-Unit.

Programming command card: Command card set matching card technology of lock ordered is required to be purchased separately to program all locks with that same card technology (not included with lock).

Accessibility Standard/Certification: ADA compliant, BHMA/ANSI Grade 1, Florida Windstorm (mortise), UL10/UL10C, ULC S104, FCC Part 15 Class C and CE directive 2014/53/EU and industry Canada compliant.

Operating Conditions: -31°F to 149°F (-35°C to 65°C) 0% to 85% non-condensing humidity at 86°F (30°C).

Finishes: 626 - Satin chrome, 744 - Dark Bronze with Brass Accents

Model: Dormakaba E3265BNL-626-41, E3265BNL-744-41
