Dormakaba 8916 AF89P Heavy-Duty Surface Applied Door Closer w/ Flat Arm

In Stock
$376.16
Price: $648.00
Instant Savings $271.84

FREE SHIPPING

SKU: 8916 AF89P 689
Series: 8900 Series - Heavy Duty
Mounting: Regular, Top Jamb or Parallel Arm
Size: Adjustable 1-6
Choose Options:
Hurry! Only left

Dormakaba 8916 AF89P Heavy-Duty Surface Closer, Parallel Flat Form Complete, Non-Hold Open, Tri-Pack, Reveals to 4 Inches

dormakaba's 8900 Series, Grade 1 hydraulic surface closers are housed in corrosionresistant aluminum with a hardened pinion/piston providing toughness and highstrength. The arm hub is made from forged steel. Standard on the 8900 Series closers are backcheck positioning with two adjustment valves, adjustable spring sizes from 1–6. Independently certified to 10 million, the 8900 Series closers are ideal for a variety of heavy-duty, as well as barrierfree, applications.

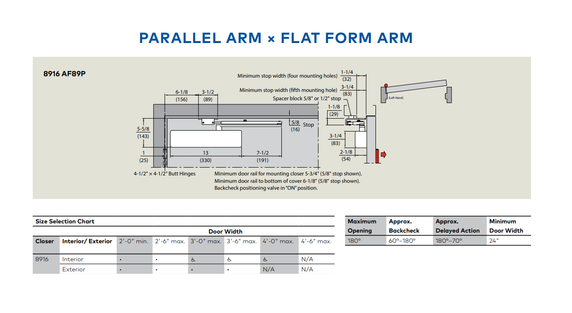

AF89P —  Parallel flat form arm complete (Tri-Pack) (0"– 4" [0 mm–102 mm] reveal). P89 included.

Technical Details
Available as 8916 with fully adjustable spring sizes 1–6. Size 1 (5 lb opening force) meets interior barrier-free AD requirements.
• 8916 may be used on doors up to 48" wide interior (42" wide exterior) and up to 180 lb.
• Non-handed for regular, top jamb, and parallel arm applications.
• Backcheck (BC) valve (standard) provides adjustable-intensity hydraulic cushioning, preventing uncontrolled door opening to protect door and frame during abusive or abrupt opening.
• POS backcheck positioning valve (standard) maintains an effective backcheck range on parallel arm applications. Valve is accessible with the closer installed.
• Full adjustment using BC, POS, Sweep and Latch valves standard.
• Full plastic cover standard. Full metal or full plastic slotted covers optional.
• All tamper-resistant (hex key) valve adjustments (including POS) accessible with closer installed.
• Standard components required for three most popular mounting configurations (Reg., TJ, PA).
• Standard fasteners include separate wood and metal screws and SN1 sex nuts for 1-3/4" thick doors.
• Full-sized templates enable accurate installation.
• Full complement of optional plates and brackets available for special applications.
• Screw options include self-drilling and tapping screws (DPK89) for steel door and frame applications or selftapping screws (TPK89) for aluminum door and frame applications.
• Available with holder/ release with (EMR Series) or without (EMF Series) photoelectric detector to control spread of smoke and fire.

Specifications
The heavy-duty 8900 Series non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. The 8900 has two independent, noncritical adjustment valves to control sweep and latch closing speeds. The backcheck positioning valve maintains an effective backcheck range on parallel arm applications. The 8916 will be available with field adjustable spring power from size 1–6 for barrier-free requirements. All closers to have field adjustable spring power from size 1–6 and meet barrier-free requirements. All 8900 fully adjustable spring force door closers to include an integral design to positively stop adjustment of the spring at the minimum and maximum spring force settings.

Features
• Spring size: 1-6
• Non-handed
• Parallel arm bracket
• Full line of specialty function arms and plates
• Backcheck positioning adjustment
• Controlled closing with two adjustment valves: 180°–15°; 15°–0°
• Backcheck
• SN1 sex nuts for 1-3/4" thick doors included
• Self-drilling screws
• Self-tapping screws
• Tamper-resistant TORX screws
• Full cover (plastic)
• Full cover (metal)

Certification
ANSI/BHMA A156.4 Grade 1 certified.
• UL and CUL listed.
• Meets UL10C for positive pressure.
• Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility.
• CSFM approved.

Finishes: 689 - Aluminum, 691 - Bronze (Dull), 690 - Bronze (Statuary), 695 - Bronze (Dark Duranodic), 693 - Black

Model: Dormakaba 8916 AF89P 689, 8916 AF89P 695, 8916 AF89P 693, 8916 AF89P 690, 8916 AF89P 691
