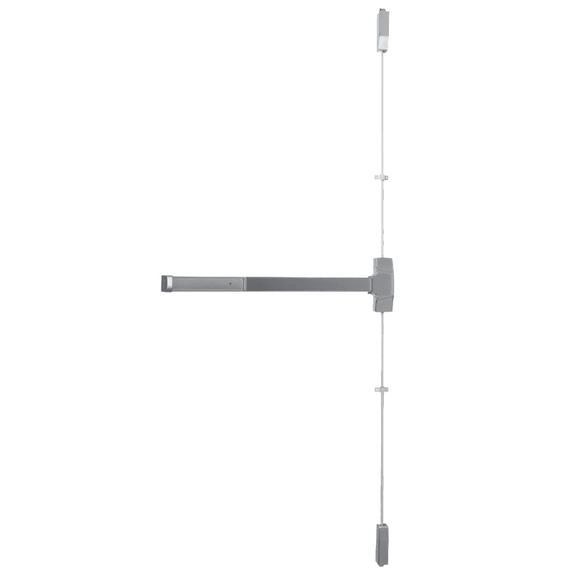

Dexter ED1000-V-EO Grade 1 Surface Vertical Rod Exit Device, 36", Exit Only

Dexter ED1000-V-EO Grade 1 SVR Exit Device, 36" Device, Exit Only, Hex Key Dogging

Specifications
• Grade 1, UL listed panic device, UL Listed 3-hour fire device
• Durable, aluminum mechanism case construction
• Deadlatching standard
• Devices fit standard 1-3/4" thick door
• 4-1/4 " minimum stile width
• Hex Key Dogging standard on all panic devices
• All devices and trim are non-handed
• Universal hardware pack for wood and hollow metal
• Door widths: 36" device fits 29" to 36" door size; 48" device fits 33" to 48" door size

Trim Function: EO - Exit Only

Device Length: 3' Device - for 28" To 36" door width

Door Height: 7'

Finishes: 626 - Satin Chrome, 630 - Satin Stainless Steel, 613 - Oil Rubbed Bronze, 622 - Matte Black

Model: Dexter ED1000-V-EO 3FT US26D, ED1000-V-EO 3FT US32D, ED1000-V-EO 3FT US10B, ED1000-V-EO 3FT 622
