Dexter DCM1000-STD-FULL-RW/PA Medium Duty Surface Closer, Full Cover w/ Regular Arm

Dexter DCM1000-STD-FULL-RW/PA Grade 1 Surface Closer, Tri Mount (Regular, Parallel or Top Jamb Mounted), Regular Arm, Adjustable Backcheck, Full Cover, Size 1 to 6

Specifications
• Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Adjustable spring size 1-6

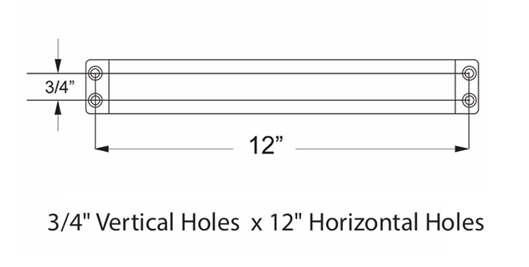

• 12" x 3/4" mounting hole pattern
• Staked, independent adjustment values: sweep speed, latch speed, and back-check
• Single piece, cast aluminum body
• Universal hardware pack

Arm type
Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Finishes: AL - Aluminum, MTBK - Matte Black, DB - Dark Bronze

Model: Dexter DCM1000-STD-FULL-RW/PA AL, DCM1000-STD-FULL-RW/PA MTBK, DCM1000-STD-FULL-RW/PA DB
