Dexter DCM1000-STD-FULL-HW/PA Medium Duty Surface Closer, Full Cover w/ Hold Open Arm

Dexter DCM1000-STD-FULL-HW/PA Door Closer, Grade 1 Surface Closer, Tri Mount (Regular, Parallel or Top Jamb Mounted), Hold Open Arm, Hold Open, Adjustable Backcheck, Full Cover, Size 1 to 6

Specifications
• Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Adjustable spring size 1-6

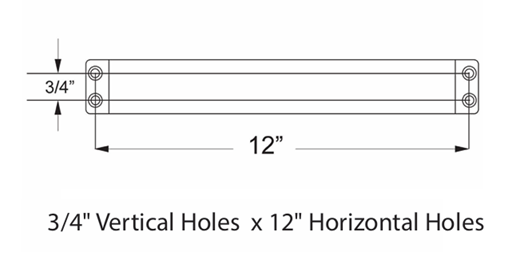

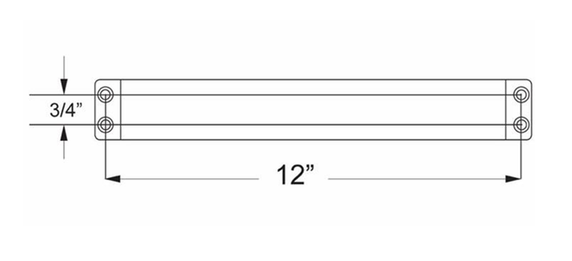

• 12" x 3/4" mounting hole pattern
• Staked, independent adjustment values: sweep speed, latch speed, and back-check
• Single piece, cast aluminum body
• Universal hardware pack

Arm type
Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Finishes: AL - Aluminum, DB - Dark Bronze

Model: Dexter DCM1000-STD-FULL-HW/PA AL, DCM1000-STD-FULL-HW/PA DB
