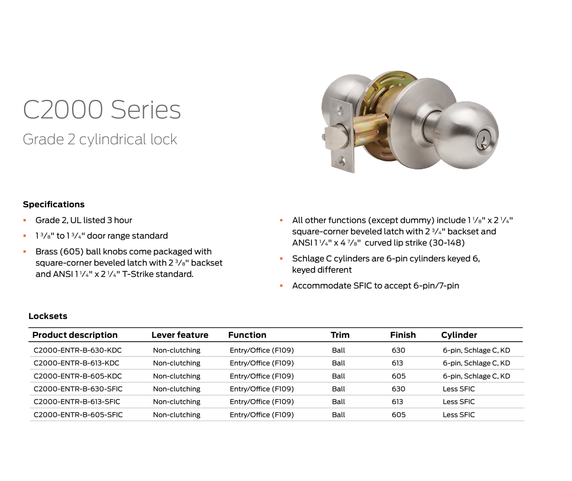

Dexter C2000-ENTR-B Grade 2 Entry/Office Cylindrical Lock w/ Ball Knob

Dexter C2000-ENTR-B Entry/Office Cylindrical Lock, Non-Clutching, Ball Knob

Specifications:
• Grade 2, UL listed 3 hour
• 1-3/8" to 1-3/4" door range standard
• Brass (605) ball knobs come packaged with square-corner beveled latch with 2-3/8" backset and ANSI 1-1/4" x 2-1/4" T-Strike standard.
• All other functions (except dummy) include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike (30-148)
• Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
• Accommodate SFIC to accept 6-pin/7-pin

Function: Entry/Office - F109

Knob Style: Ball Knob

Backset: 2-3/4" standard

Strike: ANSI 1-1/4" x 4-7/8" curved lip strike

Knob feature: Non-Clutching

Door thickness: 1-3/8" to 1-3/4" door range standard

Finishes: 630 - Satin Stainless Steel, 613 - Oil-Rubbed Bronze, 605 - Bright Brass

Model: Dexter C2000-ENTR-B-630-KDC, C2000-ENTR-B-613-KDC, C2000-ENTR-B-605-KDC, C2000-ENTR-B-630-SFIC, C2000-ENTR-B-613-SFIC, C2000-ENTR-B-605-SFIC
