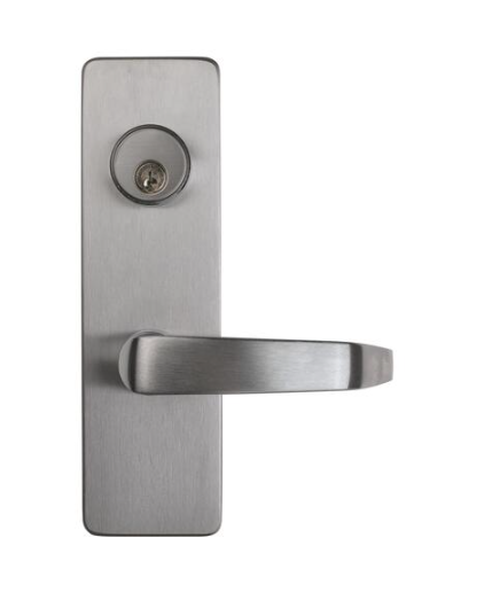

Detex EU2W S FSE Electric Unlock Trim, Fail Secure

Detex EU2W S FSE 626 Electrified 2W Lever Trim with Cylinder Hole for 40/50/51 Series Devices, S Lever Style, Fail Secure

BHMA Function: EU2W - Electric Unlock Trim (used on doors with 4” minimum stile width, with V40/V50/V51)

• For use ONLY on wide stile glass doors, wood doors, and hollow metal doors (not for use with narrow stile doors)
• For use with 40/V40 Series Rim, and 50/51/V50/V51 Series Surface Vertical Rod Exit Devices
• For use on non-Narrow Stile (NS) Value Series devices.

Benefits
• Clutching trim limits vandalism
• Key override for emergency entrance during loss of power (FSE)

Features
• Cylinder override
• Spring loaded tailpiece
• Vandal resistant break-away type lever

Mechanical Options
• EU2W - Comes standard as D Trim, with S style Lever and Fail Secure (FSE), for use with Detex 40/V40 Series Rim or 50/51/V50/V51 Series Surface Vertical Rod Device
• Not Field Reversible

Electrical Options
• Fail Secure (FSE) - During power failure, device will be locked (Security option)

LS Lever Switch
• Monitors the lever and sends a signal to access control when lever is rotated

Technical Information
• 24VDC / 150ma continuous duty
• 12VDC / 310ma continuous duty

Listings and Approvals
UL1034-34 Temperature Section 34 [Temperature Range -31°F (-35° C) to 150° F (+66° C)]

UL1034-54 Dust Section 54

MIL-STD 810F (G), Method 509.4 (Salt Fog Test)

MIL-STD 810F (G), Method 506.4 (Driving Rain), Procedure 1

Detex Limited Warranty
10 Year Mechanical/3 Year Electrical
Limited Manufacturer’s Warranty

Model: Detex EU2W S FSE RHR 626, EU2W S FSE LHR 626
