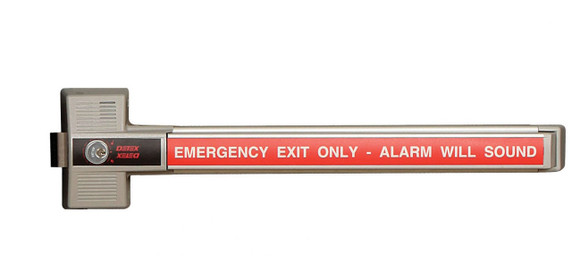

Detex ECL-230X W-CYL KA Alarm Dead Bolt Exit Control Lock w/ Cylinder

Detex ECL-230X W-CYL KA Alarmed Deadbolt Panic Hardware, Single Point Lock, with Cylinder, Gray

The ECL-230X is a code compliant, battery alarmed, rugged dead bolt, panic device with photoluminescent sign providing maximum security and a 100 decibel alarm for secondary exits.

Technical Information
• Door Types - Wood, Hollow Metal
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Standard Device fits 36”-48” door
• Optional Device fits 30”-36” door
• Machine and Sheet Metal Screws (Std.)

Benefits
• Attack resistant design for maximum holding force
• Proven durability and reliability at a reasonable price
• Easy to install
• Easy to see if the lights go out
• Time tested construction resists attack from the inside
• One size fits 36”-48” doors for code compliant acceptance
• Reduces employee and customer theft
• Straightforward operation that everyone understands

Features
• Dead bolt lock -1” throw with just over 3/4” engagement with the frame
• Saw resistant dead bolt
• Corrosion resistant alloy lock body
• 100 decibel alarm, powered by 9-volt battery (included)
• Surface/flush reversible strike
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
• Locking and unlocking (dead bolt) always arms and disarms the alarm
• Non-handed
• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
• Resetting the alarm can only be accomplished with a control key
• For 9VDC hardwiring add BE-961-1 or BE-961-2

Detex Limited Warranty
10 Year Mechanical / 3 Year Electrical
Limited Manufacturers Warranty

Finish: Gray

Model: Detex ECL-230X W-CYL KA
