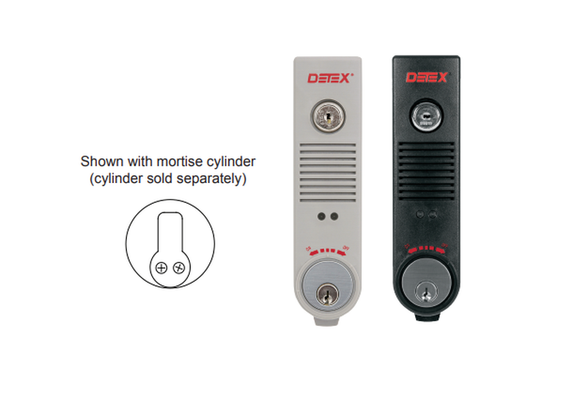

Detex EAX-500SK3 GRAY Battery Powered Exit Alarm w/ 1 MS-1059S Magnetic Switch, Gray

Detex EAX-500SK3 GRAY Exit Alarm, Surface Mount, Battery Powered, One MS-1059S Magnetic Switch, Gray Finish

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mechanical Options
SK3 - Kit allows for wall mounting and includes (1) MS-1059S Economical, Balanced Magnetic Switch Surface Mount, Brown, Closed Contacts

Benefits:
• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate
• Secure, tamper resistant housing
• Door or wall mount
• Quick, easy installation saves time and money

Features:
• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation
• Tapered cover allows for installation on narrow stile doors
• Intelligent circuit senses the external magnet location automatically and sets the correct door handing
• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers
• Alarm can only be silenced by proper control key
• 100 dB piezo alarm
• LED visual and audible arming indicators
• Modern graphics on cover to demonstrate key rotation and operation
• 9VDC battery operated with Low Battery Alert
• Key required to reset alarm
• Field selectable 2-minute auto rearm, if desired
• Field selectable status indicators, if desired

Technical Information:
Machine and Self-Drilling Screws (Std.)

Product Height: 7.70 Inch

Product Width: 2.10 Inch

Product Depth: 2-3/8 Inch

Finishes: GY - Grey • BK - Black

Listings and Approvals:
UL Listed Miscellaneous Fire Door Accessory
ANSI/BHMA A156.29

Detex Limited Warranty: 3 Year Limited Manufacturer’s Warranty

Model: Detex EAX-500SK3 GRAY
