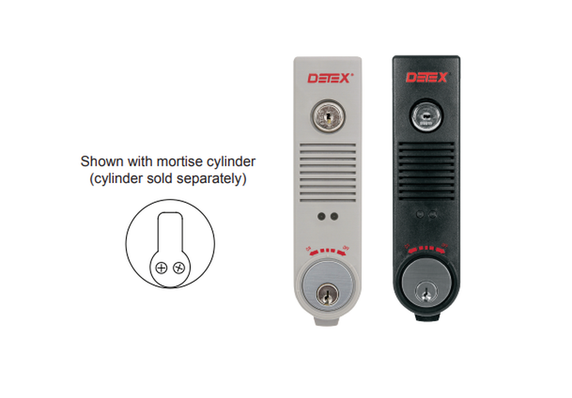

Detex EAX-300W W-CYL KA Battery Powered Weatherized Door Propped Alarm, w/ Cylinder, Gray

Detex EAX-300W GRAY W-CYL KA Door Prop Alarm, Surface Mount, Battery Powered, with Cylinder, Weatherized, Gray Finish

Description: Surface Mount Battery-Powered 100dB Door Prop Alarm with Internal Magnetic Door Contacts and Back Box

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but
may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field

Electrical Options
Weatherized for use on gates or doors that are subjected to inclement weather selectable. The smaller size makes installation quick and easy.

Benefits:
• Low cost, solution to propped open doors
• Door mount
• Helps keep energy costs down by ensuring doors are closed
• Quick, easy installation saves time and money
• Alarm silences when door is closed, no waiting for key-holder to arrive

Features:
• Secure, tamper resistant housing
• Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact
• Tapered cover allows for installation on narrow stile doors
• Intelligent circuit senses the external magnet location automatically and sets the correct door handing
• 100 dB piezo alarm
• 9VDC battery operated with Low Battery Alert
• LED visual arming indicators

Accessories:
• MC65 - Detex Mortise Cylinder pre-installed at factory
• IC7 - 7 pin interchangeable core housing, pre-installed at factory (Compatible with most standard 7 pin IC format cores)
• IK7 - Cylinder InstaKey Housing

Technical Information:
• Machine and self-drilling screws
• Optional Cylinder Nut Wrench P/N: 103779

Finishes:
• GY - Grey
• BK - Black

Listings and Approvals:
UL Listed Miscellaneous Fire Door Accessory
ANSI/BHMA A156.29

Detex Limited Warranty: 3 Year Limited Manufacturer’s Warranty

Model: Detex EAX-300W GRAY W-CYL KA
