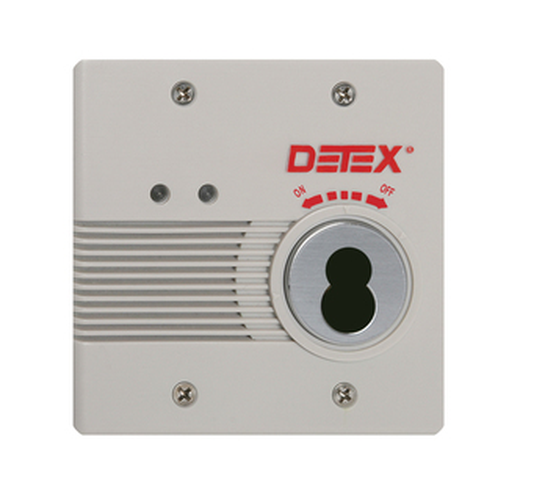

Detex EAX-2500F IC7 AC/DC External Powered Wall Mount Exit Alarm - Flush Mount w/ 7-Pin IC Cylinder Housing

Detex EAX-2500F IC7 Flush Mount Alarm, AC/DC Powered, EA-561 Warning Sign and Black Box Included, 7-Pin IC Cylinder Housing, Factory Installed, Gray

Does Not Include, but Requires: Magnetic Door Contacts & Transformer

The Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure
doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the
EAX-2500, which is designed to fit in a standard 4"x4" outlet box, makes it the choice for quick and easy installations
on emergency exit and restricted doors.

IC7 - Interchangeable mortise cylinder

Benefits:
• Field selectable features allow customer to choose status indicators and auto rearm options
• 100dB piezo horn provide security for restricted doors
• Easy to install using ordinary tools to save time and money
• New graphics on cover are easy to understand and make key operation simple
• Available in either gray or black to blend with any decor

Features:
• Surface and flush mount available using 4"x4" double switch/outlet box
• Patented cam assembly automatically adjusts for different size cylinders without spacers
• Inside Key Control uses mortise cylinder with standard Yale cam
• AC/DC hardwired power with optional 9VDC backup battery
• Low battery alert is field selectable
• Silent arming feature is field selectable
• 100dB piezo horn
• Key required to reset alarm
• Tamper resistant housing and cover protects electronics
• Bypass input available
• Relay output for signaling external accessories
• Field selectable 2-minute auto rearm, if desired

Technical Information:
7 pin cylinder requires 1/4-inch collar

Product Height: 4.60 Inch

Product Width: 4.65 Inch

Product Depth: 3 Inch

Finishes: GY - Grey • BK - Black

Detex Limited Warranty: 3 Year Mechanical / 1 Year Electrical

Model: Detex EAX-2500F IC7 GRAY
