Corbin Russwin ML20906 LL SEC M92xM105 Fail Secure Mortise Electrified Lock, Body Only w/ Request to Exit and Security Monitor

Corbin Russwin ML20906 LL SEC M92xM105 Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, Outside Cylinder Override, Request to Exit Monitor and Security Monitor

Only Armor and Strike are included with the lock body.

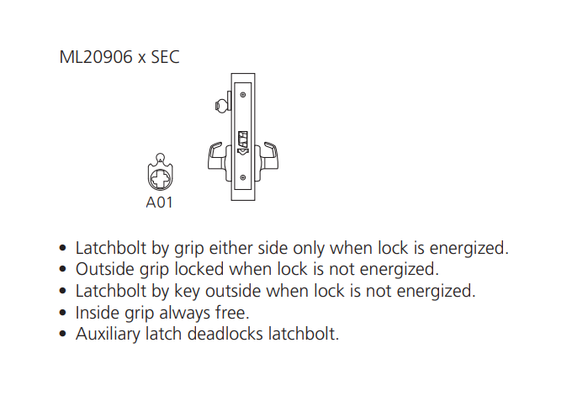

Function: 906 - Electrified Fail Secure

Fail Secure - locked when power is off and unlocked when the power is on.

Strike Size: 4-7/8" x 1-1/4"

Operating Voltage: 12VDC/24VDC

Latch Throw: 3/4 Inch

Latchbolt Size: 5/8" x 1"

Door Thickness: 1-3/4"

Keying Type: 0-Bitted

Backset: 2-3/4 Inch

M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch).

M105 - Security Monitor
Security Monitor is two switches in series that monitors lock status (locked or unlocked) and Auxiliary Latch position. Recommended for fail safe applications that require monitoring of the secure side when lock loses power.

Model: Corbin Russwin ML20906 LL 626 SEC M92xM105, ML20906 LL 605 SEC M92xM105, ML20906 LL 606 SEC M92xM105, ML20906 LL 612 SEC M92xM105, ML20906 LL 613 SEC M92xM105, ML20906 LL 625 SEC M92xM105, ML20906 LL 619 SEC M92xM105, ML20906 LL 630 SEC M92xM105
