Corbin Russwin ML20906 LL SAF M91xM92 Fail Safe Mortise Electrified Lock, Body Only w/ Latchbolt and Request to Exit Monitor

Corbin Russwin ML20906 LL SAF M91xM92 Fail Safe Electrified Mortise Lock, Outside Grip Locked when Energized, Outside Cylinder Override, Latchbolt Monitor and Request to Exit Monitor

Only Armor and Strike are included with the lock body.

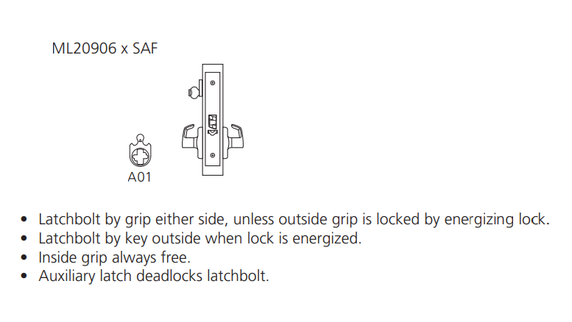

Function: 906 - Electrified Fail Safe

Fail Safe - unlocked when power is off and locked when the power is on.

Strike Size: 4-7/8" x 1-1/4"

Operating Voltage: 12VDC/24VDC

Latch Throw: 3/4 Inch

Latchbolt Size: 5/8" x 1"

Door Thickness: 1-3/4"

Keying Type: 0-Bitted

Backset: 2-3/4 Inch

M91 - Latchbolt Monitor
Latchbolt monitoring is a SPDT switch which monitors the full extension of the main latch.

M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch).

Model: Corbin Russwin ML20906 LL 626 SAF M91xM92, ML20906 LL 605 SAF M91xM92, ML20906 LL 606 SAF M91xM92, ML20906 LL 612 SAF M91xM92, ML20906 LL 613 SAF M91xM92, ML20906 LL 625 SAF M91xM92, ML20906 LL 619 SAF M91xM92, ML20906 LL 630 SAF M91xM92
