Corbin Russwin ML2069 NSN CL6 Institutional Privacy Mortise Lock, Accepts Large Format IC Core (LFIC)

Corbin Russwin ML2069 NSN CL6 Institutional Privacy Mortise Lock, Newport Lever, N Escutcheon, Accepts Large Format IC Core (LFIC)

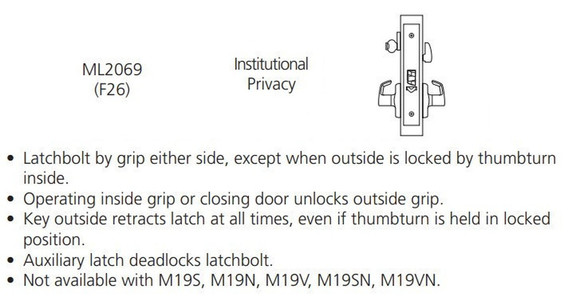

Function: Institutional Privacy - F26
• Latchbolt by grip either side, except when outside is locked by thumbturn inside.
• Operating inside grip or closing door unlocks outside grip.
• Key outside retracts latch at all times, even if thumbturn is held in locked position.
• Auxiliary latch deadlocks latchbolt.
• Not available with M19S, M19N, M19V, M19SN, M19VN.

Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lever Style: NSN - Newport Lever w/ N Escutcheon

Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm).

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. Deadbolt One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub: Standard knob/lever hub is steel, 5/16" (8mm)

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.

Cylinder: Accepts Large Format IC Core (LFIC)

Warranty: Ten-year limited.

Certification/Compliance*

ANSI/BHMA
Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

UL/cUL-UL10C Positive Pressure
All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair (3 hour fire door). Letter F and UL symbol on armored
front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact
the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing firerated opening, or specifying and installing
a new fire-rated opening, please consult with a code specialist or local code official
(Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns, return to within
1/2" (13mm) of door face.

Windstorm/Hurricane
Certified (refer to local codes).

*Any undated reference to a code or standard appearing in the this catalog shall be interpreted
as referring to the latest edition of that code or standard.

Model: Corbin Russwin ML2069 NSN 626 CL6, ML2069 NSN 630 CL6, ML2069 NSN 605 CL6, ML2069 NSN 606 CL6, ML2069 NSN 612 CL6, ML2069 NSN 613 CL6, ML2069 NSN 619 CL6, ML2069 NSN 625 CL6
