Corbin Russwin ML2069 LSM Institutional Privacy Mortise Lock

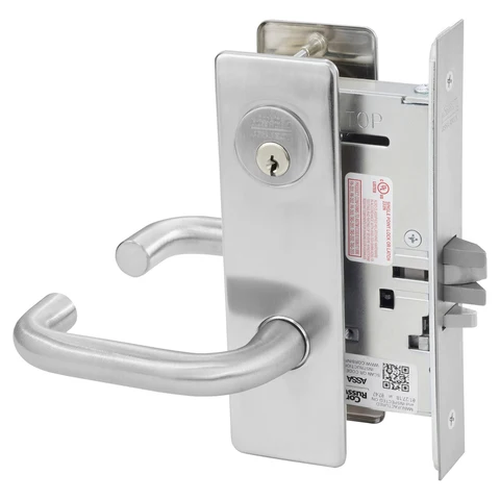

Corbin Russwin ML2069 LSM Institutional Privacy Mortise Lock, Lustra Lever, M Escutcheon

Function: Institutional Privacy - F26
• Latchbolt by grip either side, except when outside is locked by thumbturn inside.
• Operating inside grip or closing door unlocks outside grip.
• Key outside retracts latch at all times, even if thumbturn is held in locked position.
• Auxiliary latch deadlocks latchbolt.
• Not available with M19S, M19N, M19V, M19SN, M19VN.

Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lever Style: LSM - Lustra Lever w/ M Escutcheon

Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm).

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. Deadbolt One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub: Standard knob/lever hub is steel, 5/16" (8mm)

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.

Cylinder: Brass, 6-pin, L4 keyway, standard. Optional cylinders available.

Keys: Two nickel silver standard.

Keying Features Available: Master keying, Construction master keying, Visual key control,
Concealed key control, Plug only to show (concealed shell), 7-pin cylinder, Security cylinder,
Access 3® cylinder, Pyramid cylinder, Interchangeable core (LFIC or SFIC), Security LFIC, Pyramid LFIC,
Access 3® LFIC, Master ring cylinder, Flex head cylinder

Warranty: Ten-year limited.

Certification/Compliance*

ANSI/BHMA
Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

UL/cUL-UL10C Positive Pressure
All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair (3 hour fire door). Letter F and UL symbol on armored
front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact
the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing firerated opening, or specifying and installing
a new fire-rated opening, please consult with a code specialist or local code official
(Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns, return to within
1/2" (13mm) of door face.

Windstorm/Hurricane
Certified (refer to local codes).

*Any undated reference to a code or standard appearing in the this catalog shall be interpreted
as referring to the latest edition of that code or standard.

Model: Corbin Russwin ML2069 LSM 626, ML2069 LSM 630, ML2069 LSM 605, ML2069 LSM 606, ML2069 LSM 612, ML2069 LSM 613, ML2069 LSM 619, ML2069 LSM 625, ML2069 LSM 626 CL6, ML2069 LSM 630 CL6, ML2069 LSM 605 CL6, ML2069 LSM 606 CL6, ML2069 LSM 612 CL6, ML2069 LSM 613 CL6, ML2069 LSM 619 CL6, ML2069 LSM 625 CL6, ML2069 LSM 626 LC, ML2069 LSM 630 LC, ML2069 LSM 605 LC, ML2069 LSM 606 LC, ML2069 LSM 612 LC, ML2069 LSM 613 LC, ML2069 LSM 619 LC, ML2069 LSM 625 LC
