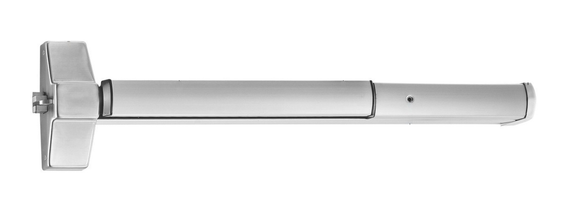

Corbin Russwin ED5200 Rim Exit Device

Corbin Russwin ED5200 Rim Exit Device

Specifications

Handing: Standard device is non-handed. Lever trim is handed.

Bar Length - Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

Door Thickness : 1-3/4" (44mm) standard.

Stile: Minimum width 4-1/2" (114mm).

Latchbolt: 3/4" (19mm) throw, stainless steel pullmantype with stainless steel deadlocking latch.

Materials
Device: Heavy duty cold forged steel chassis; heavy gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

Dogging
Standard on panic-rated devices; single-point 1/4 turn hex key dogging.
Optional: less dogging, specify M51.
Optional: cylinder dogging; specify M52.
Optional: electric dogging; specify M97.
Mechanical dogging not available on firerated devices.

Fasteners
Standard on panic devices: machine screws and wood door fasteners.

Strike: Surface mounted 3/8"(10mm) diameter roller strike, complete with positive locking plate
and shims, assuring low friction relocking for a long, trouble-free life.

Cylinders: Cylinder not included unless specified.

Shim Kit: Optional for mounting device over raised vision light molding.

Warranty: Five-year limited.

Certification/Compliance
ANSI: Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code.

UL /cUL: All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol
on active case cover indicates listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.

ADA
Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626 - Satin Chrome, 630 - Satin Stainless Steel

Model: Corbin Russwin ED5200 630, ED5200 613, ED5200 605
