Corbin Russwin E957ET 630 Nightlatch Exit Device Trim, Satin Stainless Steel Finish

Corbin Russwin E957ET 630 Nightlatch Lever Trim, Essex Lever w/ Escutcheon, Satin Stainless Steel

Function: Nightlatch - ANSI No.03
Entrance by trim when latchbolt is retracted by key.

Not recommended for use on ED5400 or ED5800 series exit devices.

Features:
• Free Wheeling vandal-resistant design
• Beveled edges
• Through-bolted to exit device
• 5-year limited warranty

For Use With: ED5000 Series Exit Device

Trim: Nightlatch

Function: Key retracts latch bolt

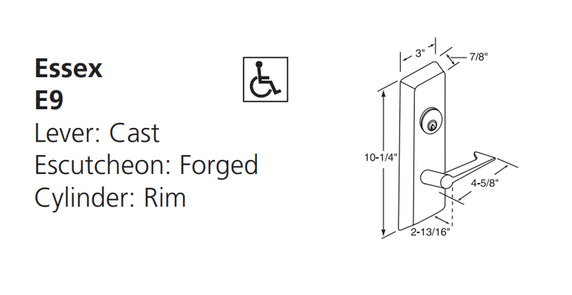

Lever Style: Essex Lever w/ Escutcheon

Product Projection: 2-13/16 Inch

Lever Length-Inches: 4-5/8 Inch

Trim Plate Width: 3 Inch

Trim Plate Height: 10-1/4 Inch

Model: Corbin Russwin E957ET 626
