Corbin Russwin DL3013 Single Cylinder Cylindrical Deadlock

Corbin Russwin DL3013 Grade 1 Single Cylinder Cylindrical Deadlock

Function: DL3013 - Single Cylinder - ANSI E0150
• By key outside and by thumbturn inside.

Specifications
Handing: Non-handed

Door thickness: 1-3/4" (44mm) - 2-1/4" (57mm) standard

Backset: Standard: 2-3/4" (70mm). Optional: 2-3/8" (60mm)

Front: Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.

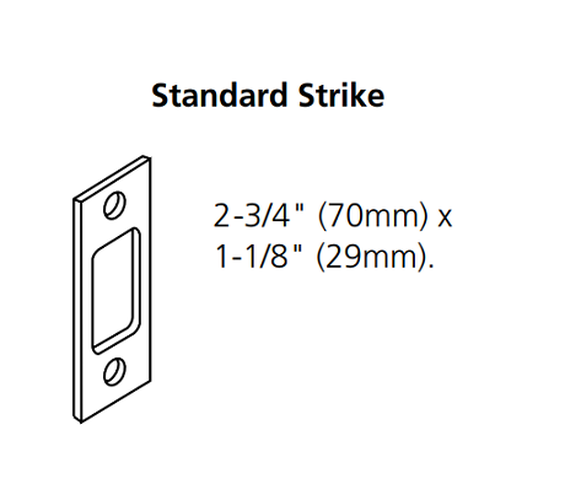

Strike: Standard: 2-3/4" (70mm) x 1-1/8" (29mm).

Cylinder: Brass, 6-pin, L4 keyway, 0-bitted.

Keys: Two nickel silver standard.

Keying: Master keying, Interchangeable core (IC)

Warranty: One-year limited.

Model: Corbin Russwin DL3013 626, DL3013 605, DL3013 606, DL3013 613, DL3013 625, DL3013 626 CL6, DL3013 605 CL6, DL3013 606 CL6, DL3013 613 CL6, DL3013 625 CL6, DL3013 626 LC, DL3013 605 LC, DL3013 606 LC, DL3013 613 LC, DL3013 625 LC
