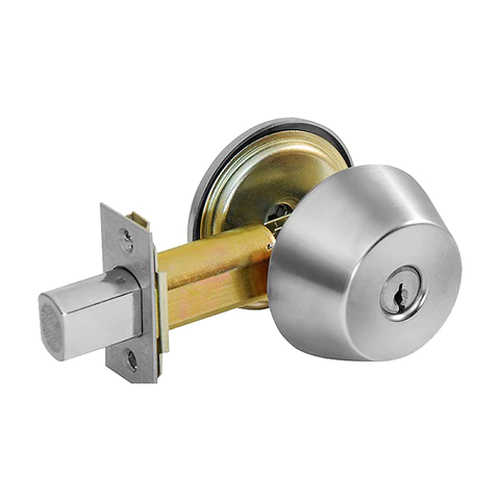

Corbin Russwin DL2217 Grade 2 Classroom Cylindrical Deadlock

Corbin Russwin DL2217 Grade 2 Classroom Deadbolt

Function: DL2217 - Classroom - ANSI E0170
• By key outside and by thumbturn inside.
• Thumbturn will retract but not project deadbolt.

Specifications
Handing: Non-handed

Series: D2200 - Grade 2

Door thickness: Standard: 1-3/4" (44mm)

Backset: Standard: 2-3/4" (70mm). Optional: 2-3/8" (60mm)

Front: Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm)

Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Strike: Standard; 2-3/4" (70mm) x 1-1/8" (29mm)

Cylinder: Brass, 6-pin, L4 keyway, 0-bitted.

Keys: Two nickel silver standard.

Keying: Master keying, Interchangeable core (IC)

Warranty: One-year limited

Certification/Compliance
UL: UL listed to US and Canadian safety standard.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

ANSI
DL2200 - 156.5 Grade 2

Model: Corbin Russwin DL2217 626, DL2217 605, DL2217 606, DL2217 613, DL2217 625, DL2217 626 CL6, DL2217 605 CL6, DL2217 606 CL6, DL2217 613 CL6, DL2217 625 CL6, DL2217 626 CL7, DL2217 605 CL7, DL2217 606 CL7, DL2217 613 CL7, DL2217 625 CL7
