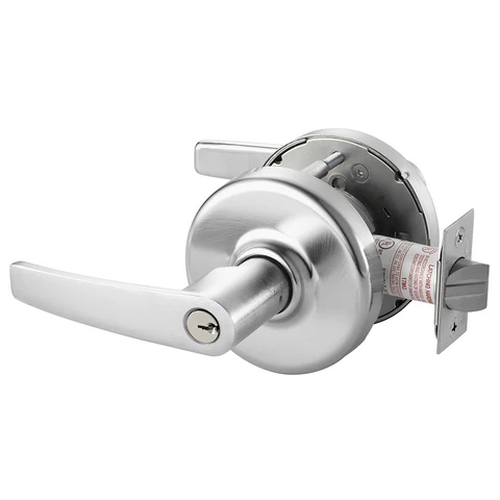

Corbin Russwin CLX3351 AZD Extra Heavy-Duty Entrance Cylindrical Lever Lock

Corbin Russwin CLX3351 AZD Extra Heavy-Duty Entrance Cylindrical Lever Lock

Function Description: Entrance or Office - ANSI No. F109
• Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks
   outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position.)
• Turning inside lever unlocks outside lever.
• Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside
   lever until button is manually turned to unlocked position.
• Inside lever always free.

Handing: Non-handed

Door Thickness: 1-3/4" (44mm) - 2" (51mm) standard.

Door Prep: ANSI/BHMA A156.115

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)
2-3/8" (60mm) backset w/ 1" wide front

Bearing Assembly: Cast and machined stainless steel

Latchbolt: Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Front: Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
Accommodates flat front doors and doors beveled 1/8" (3mm) in 2" (51mm).

Strike: Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x
1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Levers: Secured with 6 lobe security set screw standard

Roses: Brass

Cylinder: Brass, 6-pin L4 keyway,

Keying Features Available:
Master keying, Construction master keying, Visual key control, Concealed key control,
Interchangeable core (LFIC or SFIC), Security, Security LFIC, Access 3® LFIC, Pyramid, Pyramid LFIC

Keys: Two nickel silver standard.

Warranty: Ten-year limited.

Certification/Compliance:
ANSI/BHMA
Certified ANSI/BHMA A156.2 (2017) Series 4000 — Grade 1
Certified ANSI/BHMA A156.41

UL/cUL
UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)

NFPA 80
Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives

Positive Pressure
Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA
All levers conform to ADA clear opening width requirements of ANSI A117.1

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard)
All levers with returns comply; levers return to within 1/2" (13mm) of door face

Windstorm/Hurricane
All individual components of a total door opening are required to comply with each code.

Model: Corbin Russwin CLX3351 AZD 626, CLX3351 AZD 605, CLX3351 AZD 606, CLX3351 AZD 612, CLX3351 AZD 613, CLX3351 AZD 625, CLX3351 AZD 626 M08, CLX3351 AZD 605 M08, CLX3351 AZD 606 M08, CLX3351 AZD 612 M08, CLX3351 AZD 613 M08, CLX3351 AZD 625 M08, CLX3351 AZD 626 CL6, CLX3351 AZD 605 CL6, CLX3351 AZD 606 CL6, CLX3351 AZD 612 CL6, CLX3351  AZD 613 CL6, CLX3351 AZD 625 CL6, CLX3351 AZD 626 LC, CLX3351 AZD 605 LC, CLX3351 AZD 606 LC, CLX3351 AZD 612 LC, CLX3351 AZD 613 LC, CLX3351 AZD 625 LC
