Corbin Russwin CLX3310 PZD Extra Heavy-Duty Passage or Closet Lever Set

Corbin Russwin CLX3310 PZD Grade 1 Passage/Closet Cylindrical Lock, Princeton Lever, D Rose, Non-Keyed, Non-handed

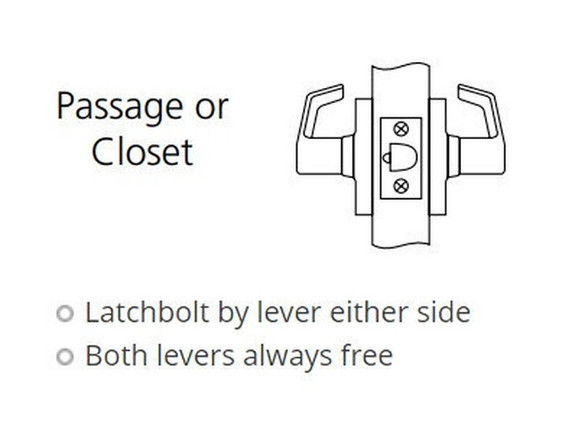

Function Description: Passage or closet - ANSI No. F75
Latchbolt by lever either side, Both levers always free.

Handing: Non-handed

Door Thickness: 1-3/4" (44mm) - 2" (51mm) standard.

Door Prep: ANSI/BHMA A156.115

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Bearing Assembly: Cast and machined stainless steel

Latchbolt: Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Front: Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
Accommodates flat front doors and doors beveled 1/8" (3mm) in 2" (51mm).

Strike: Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x
1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Levers: Secured with 6 lobe security set screw standard

Roses: Brass

Warranty: Ten-year limited.

Certification/Compliance:
ANSI/BHMA
Certified ANSI/BHMA A156.2 (2017) Series 4000 — Grade 1
Certified ANSI/BHMA A156.41

UL/cUL
UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)

NFPA 80
Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives

Positive Pressure
Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA
All levers conform to ADA clear opening width requirements of ANSI A117.1

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard)
All levers with returns comply; levers return to within 1/2" (13mm) of door face

Windstorm/Hurricane
All individual components of a total door opening are required to comply with each code.

Model: Corbin Russwin CLX3310 NZD 626, CLX3310 NZD 625
