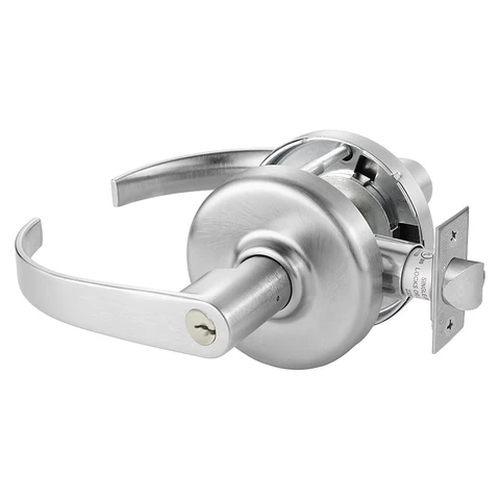

Corbin Russwin CL3861 PZD Grade 2 Entry or Office Cylindrical Lever Lock

Corbin Russwin CL3861 PZD Grade 2 Entry or Office Cylindrical Lever Lock

Function Description: Entry or Office - ANSI No. F82
• Deadlocking latchbolt by lever either side, except when push button locks outside lever.
• Push button released by turning inside lever or by key in outside lever. (Lever handle is free-wheeling in locked position.)
• Closing door does not release push button.
• Inside lever always free.

Handing: Non-handed.

Door Thickness Adjustment: Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors. For 2" and
2-1/4" doors, specify door thickness.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5"

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Latchbolt:1/2" throw latch with universal “floating” front to fit both flat and beveled doors. 2-1/4" x 1-1/8"
square corner front for 2-3/4" backset standard. For other latch options,

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard.
Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway, Optional Cylinders available

Keying Features: Conventional 6-pin, Conventional 7-pin, Master keying, Construction master keying,
Visual key control Concealed key control, Pyramid®, Security, Pyramid High Security, Interchangeable core (IC),
Security, Security IC, Pyramid Security IC, Pyramid High Security IC

Keys: Two nickel-silver standard.

Warranty: Seven-year limited.

Certification/Compliance
ANSI: Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

California State Reference Code: (Formerly Title 19, California State Fire

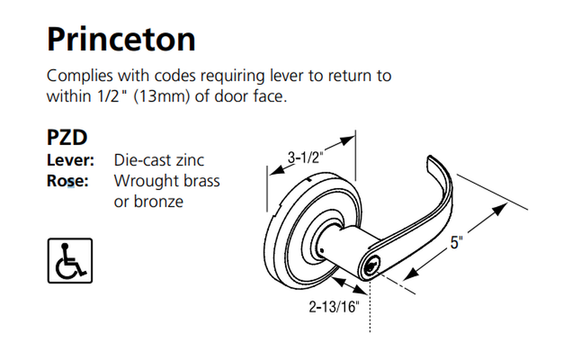

Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc
All locks listed for “A” label single doors. Letter “F” and UL symbol on latch front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a
new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction)
to ensure compliance with all applicable codes and ratings.

Model: Corbin Russwin CL3861 PZD 626, CL3861 PZD 605, CL3861 PZD 606, CL3861 PZD 612, CL3861 PZD 613, CL3861 PZD 625, CL3861 PZD 626 M08, CL3861 PZD 605 M08, CL3861 PZD 606 M08, CL3861 PZD 612 M08, CL3861 PZD 613 M08, CL3861 PZD 625 M08, CL3861 PZD 626 CL6, CL3861 PZD 605 CL6, CL3861 PZD 606 CL6, CL3861 PZD 612 CL6, CL3861 PZD 613 CL6, CL3861 PZD 625 CL6, CL3861 PZD 626 LC, CL3861 PZD 605 LC, CL3861 PZD 606 LC, CL3861 PZD 612 LC, CL3861 PZD 613 LC, CL3861 PZD 625 LC
