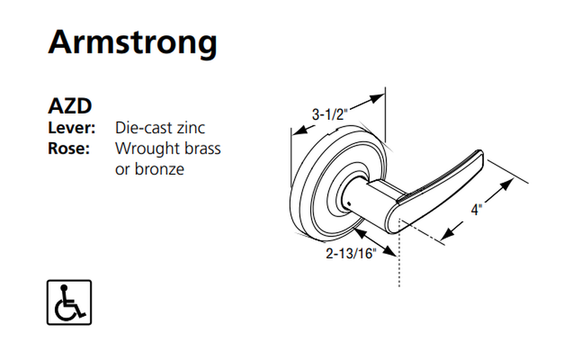

Corbin Russwin CL3851 AZD Grade 2 Entrance or Office Cylindrical Lever Lock

Corbin Russwin CL3851 AZD Grade 2 Entrance or Office Cylindrical Lever Lock

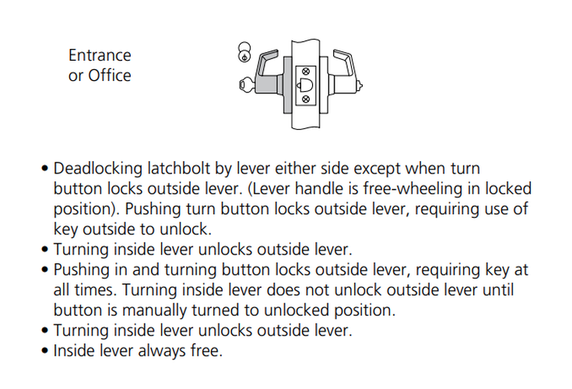

Function Description: Entrance or Office - ANSI No. F109
• Deadlocking latchbolt by lever either side except when turn button locks outside lever.
  (Lever handle is free-wheeling in locked position). Pushing turn button locks outside lever,
  requiring use of key outside to unlock.
• Turning inside lever unlocks outside lever.
• Pushing in and turning button locks outside lever, requiring key at all times.
  Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
• Turning inside lever unlocks outside lever.
• Inside lever always free.

Handing: Non-handed.

Door Thickness Adjustment: Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors. For 2" and
2-1/4" doors, specify door thickness.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5"

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Latchbolt:1/2" throw latch with universal “floating” front to fit both flat and beveled doors. 2-1/4" x 1-1/8"
square corner front for 2-3/4" backset standard. For other latch options,

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard.
Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway, Optional Cylinders available

Keying Features: Conventional 6-pin, Conventional 7-pin, Master keying, Construction master keying,
Visual key control Concealed key control, Pyramid®, Security, Pyramid High Security, Interchangeable core (IC),
Security, Security IC, Pyramid Security IC, Pyramid High Security IC

Keys: Two nickel-silver standard.

Warranty: Seven-year limited.

Certification/Compliance
ANSI: Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

California State Reference Code: (Formerly Title 19, California State Fire
Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc
All locks listed for “A” label single doors. Letter “F” and UL symbol on latch front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a
new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction)
to ensure compliance with all applicable codes and ratings.

Model: Corbin Russwin CL3851 AZD 626, CL3851 AZD 605, CL3851 AZD 606, CL3851 AZD 612, CL3851 AZD 613, CL3851 AZD 625, CL3851 AZD 626 M08, CL3851 AZD 605 M08, CL3851 AZD 606 M08, CL3851 AZD 612 M08, CL3851 AZD 613 M08, CL3851 AZD 625 M08, CL3851 AZD 626 CL6, CL3851 AZD 605 CL6, CL3851 AZD 606 CL6, CL3851 AZD 612 CL6, CL3851 AZD 613 CL6, CL3851 AZD 625 CL6, CL3851 AZD 626 LC, CL3851 AZD 605 LC, CL3851 AZD 606 LC, CL3851 AZD 612 LC, CL3851 AZD 613 LC, CL3851 AZD 625 LC
