Corbin Russwin CL3850 PZD Grade 2 Half Dummy Lever Trim

Corbin Russwin CL3850 PZD Grade 2 Half Dummy Lever Trim

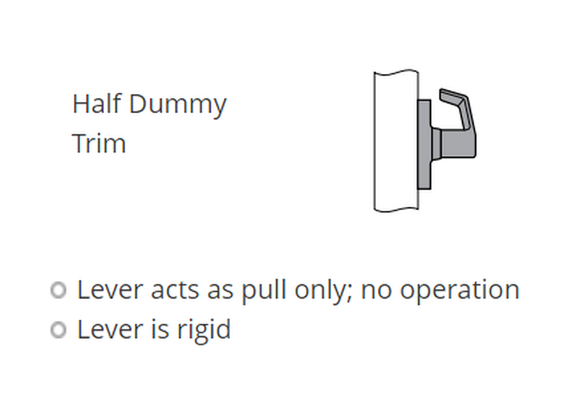

Function Description: Half Dummy Lever Trim
• Lever acts as pull only; no operation.
• Lever is rigid.

Handing: Non-handed.

Door Thickness Adjustment: Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors. For 2" and
2-1/4" doors, specify door thickness.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5"

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Latchbolt:1/2" throw latch with universal “floating” front to fit both flat and beveled doors. 2-1/4" x 1-1/8"
square corner front for 2-3/4" backset standard. For other latch options,

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard.
Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway, Optional Cylinders available

Keying Features: Conventional 6-pin, Conventional 7-pin, Master keying, Construction master keying,
Visual key control Concealed key control, Pyramid®, Security, Pyramid High Security, Interchangeable core (IC),
Security, Security IC, Pyramid Security IC, Pyramid High Security IC

Keys: Two nickel-silver standard.

Warranty: Seven-year limited.

Certification/Compliance
ANSI: Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

California State Reference Code: (Formerly Title 19, California State Fire
Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc
All locks listed for “A” label single doors. Letter “F” and UL symbol on latch front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a
new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction)
to ensure compliance with all applicable codes and ratings.

Model: Corbin Russwin CL3850 PZD 626, CL3850 PZD 605, CL3850 PZD 606, CL3850 PZD 612,CL3850 PZD 613, CL3850 PZD 625
