Corbin Russwin CL3820 AZD Grade 2 Privacy Lever Lock

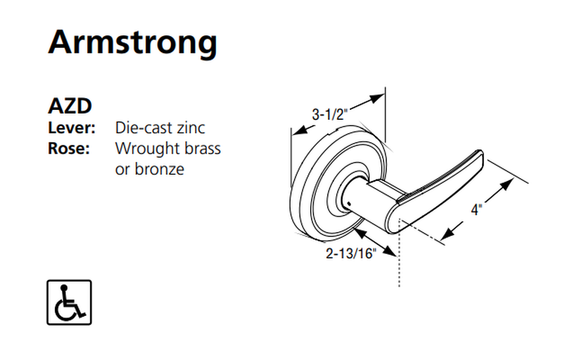

Corbin Russwin CL3820 AZD Grade 2 Privacy Bedroom or Bathroom Cylindrical Lock, Armstrong Lever, Non-handed

Function Description: Privacy Bedroom or Bathroom - ANSI F76
• Throw-off latchbolt by lever either side, except when push button locks outside lever. (Lever handle is free-wheeling in locked
   position.)
• Outside lever locked by push button. (Lever handle is free-wheeling in locked position.)
• Outside lever unlocked by emergency release tool, by rotating inside lever or by closing door.
• Inside lever always free.

Handing: Non-handed.

Door Thickness Adjustment: Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.

Backset: 2-3/4" standard.

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Latchbolt:1/2" throw latch with universal “floating” front to fit both flat and beveled doors. 2-1/4" x 1-1/8"
square corner front for 2-3/4" backset standard. For other latch options,

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard.
Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway, Optional Cylinders available

Keying Features: Conventional 6-pin, Conventional 7-pin, Master keying, Construction master keying,
Visual key control Concealed key control, Pyramid®, Security, Pyramid High Security, Interchangeable core (IC),
Security, Security IC, Pyramid Security IC, Pyramid High Security IC

Keys: Two nickel-silver standard.

Warranty: Seven-year limited.

Certification/Compliance
ANSI: Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

California State Reference Code: (Formerly Title 19, California State Fire
Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc
All locks listed for “A” label single doors. Letter “F” and UL symbol on latch front indicate listing.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a
new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction)
to ensure compliance with all applicable codes and ratings.

Model: Corbin Russwin CL3820 AZD 626, CL3820 AZD 605, CL3820 AZD 606, CL3820 AZD 612, CL3820 AZD 613, CL3820 AZD 625
