Selecting the right spring hinge type determines whether your self-closing door system delivers years of reliable service or becomes a maintenance headache requiring constant adjustment and premature replacement. Commercial facilities specify spring hinges across diverse applications, fire-rated stairwell doors, apartment entry doors, hotel guest rooms, utility closets, and high-traffic corridor doors, each with distinct operational requirements that favor specific hinge configurations. Understanding the mechanical differences between single-acting and double-acting designs, full mortise versus surface-mount installations, and standard versus heavy-duty weight ratings ensures you match hardware capabilities to actual door conditions and performance expectations.

Spring hinge selection involves more than choosing a size and finish. You need to consider door weight and material, frame construction type, fire rating requirements, traffic volume, environmental exposure, and whether the application demands concealed hardware or accepts visible components. A 3'0" x 7'0" hollow metal fire door in a hospital stairwell has completely different requirements than a 2'6" x 6'8" wood door on a hotel guest room, yet both use spring hinges. This guide breaks down the major spring hinge categories, explains the mechanical and operational differences between types, and provides selection criteria that match hinge specifications to real-world application demands.

Single-Acting vs. Double-Acting Spring Hinges

Single-Acting Spring Hinges

Single-acting spring hinges are the most common type in commercial installations, designed for doors that swing in one direction only, either push or pull, but not both. The internal torsion spring applies closing force as the door opens, returning it to the closed position when released. These hinges install like standard butt hinges with leaves mortised into both door and frame, providing a clean, flush appearance that works well in finished architectural openings.

The Stanley 2060R series exemplifies commercial-grade single-acting design with UL fire ratings, adjustable tension, and standard weight construction suitable for most commercial door applications up to 200 pounds. Single-acting hinges dominate installations where traffic flows predominantly in one direction, stairwell doors, apartment entries, utility closures, and back-of-house commercial spaces. They provide reliable self-closing without the complexity or cost of double-acting mechanisms.

Standard configurations include three-knuckle and five-knuckle designs. Three-knuckle hinges are lighter and less expensive, suitable for interior applications with moderate traffic. Five-knuckle versions offer improved load distribution and smoother operation for heavier doors or high-frequency use. The McKinney 1502 series provides adjustable tension with hex key accessibility, allowing field adjustment without hinge removal, critical for maintaining a consistent closing force as doors settle or environmental conditions change.

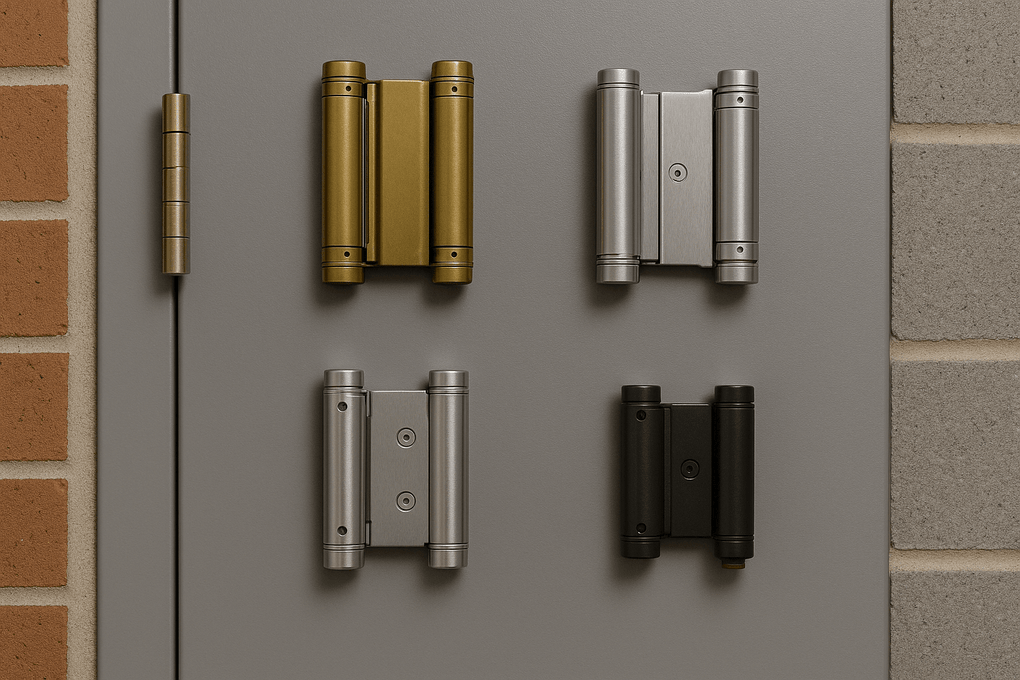

Double-Acting Spring Hinges

Double-acting spring hinges allow doors to swing in both directions, push or pull from either side, automatically returning to the center closed position from either direction of travel. These hinges use dual spring mechanisms or specialized cam designs that provide closing force regardless of swing direction. Common applications include restaurant kitchen doors, retail stockroom entries, hospital corridor doors, and any location where bi-directional traffic flow without hands-free operation benefits workflow efficiency.

Installation differs significantly from single-acting hinges. Double-acting hardware typically mounts on the door surface rather than in mortised pockets, with the pivot point positioned at the door centerline rather than at the edge. This central pivot allows equal swing arc in both directions while maintaining balanced spring force. Some double-acting designs use floor-mounted pivots for the primary load-bearing function, with spring hinges providing only closing force rather than weight support.

The operational trade-off with double-acting hinges involves reduced closing force compared to single-acting equivalents. The spring must provide enough force to return the door from either direction, but not so much that opening becomes difficult from both sides. This typically results in lighter spring tension than single-acting applications, which can be problematic in high-wind locations or applications with significant latch resistance.

Shop commercial spring hinges with adjustable tension for reliable self-closing performance in diverse applications.

Mounting Configuration Types

Full Mortise Spring Hinges

Full mortise spring hinges are the standard for most commercial door installations, with both hinge leaves recessed into mortises cut in the door edge and frame jamb. When properly installed, only the hinge barrel remains visible between door and frame; the leaves sit flush with the mounting surfaces. This configuration provides maximum strength through direct bearing contact between the hinge and the mounting surface, distributes loads evenly across the mortise area, and delivers a clean architectural appearance preferred in finished spaces.

Full mortise installation requires precision. The mortise depth must equal exactly one hinge leaf thickness; too shallow and the hinge protrudes, causing binding, too deep and gaps appear between door and frame when closed. Professional installations use router templates or mortising jigs to ensure consistent depth across all hinge locations. The flush mounting that full mortise provides prevents the door from moving outward under pressure, making these hinges the preferred choice for fire-rated applications where positive closure is critical.

Load capacity in full mortise spring hinges depends on leaf size, material gauge, and fastener count. Standard 4" x 4" hinges with 0.129" gauge steel handle doors up to 160 pounds using three hinges, while 4-1/2" x 4-1/2" heavy weight versions with 0.190" gauge support 200+ pound doors. The mortise provides lateral support that prevents hinge deflection under load, extending service life compared to surface-mounted alternatives in equivalent applications.

Surface-Mounted Spring Hinges

Surface-mounted spring hinges attach directly to door and frame faces without mortising, simplifying installation where cutting mortises isn't practical or desired. Applications include retrofits where preserving existing door and frame finish is essential, thin-section doors lacking adequate edge thickness for mortising, and temporary installations where minimal modification is preferred. The exposed hinge leaves create a visible hardware aesthetic, acceptable in utility applications but generally avoided in finished architectural spaces.

Installation speed is the primary advantage. Surface-mount hinges install with basic drilling and fastener installation, requiring no routing or chiseling. This makes them ideal for maintenance situations where minimizing downtime matters more than aesthetic perfection. The trade-off involves reduced strength compared to mortised installations; surface-mount hinges rely entirely on fastener holding strength without the lateral support that mortises provide.

Security considerations favor mortised over surface-mounted configurations. Surface hinges allow the door to be pried outward since nothing except the fasteners prevents the door from moving away from the frame. This makes surface-mount spring hinges unsuitable for security-critical applications or locations where forced entry resistance matters.

Half-Mortise Spring Hinges

Half-mortise spring hinges represent a hybrid approach with one leaf mortised and the other surface-mounted. Typically, the frame leaf mounts on the surface while the door leaf mortises into the door edge, though the reverse configuration exists for specific applications. This design simplifies installation compared to a full mortise while providing a better appearance than a full surface-mount; only the frame-side leaf remains visible when the door is closed.

These hinges suit retrofit situations where the frame cannot be mortised without damage, but the door edge is accessible for proper mortising. Aluminum storefront frames, for example, often lack adequate wall thickness for mortising but can accept surface-mounted leaves with appropriate fasteners. The door side mortises normally provide proper door-to-frame seating and eliminate the gap that full surface-mount creates.

Load capacity falls between full mortise and surface-mount configurations. The mortised leaf provides good load distribution on its side, but the surface-mounted leaf relies solely on fastener strength. Specifications typically rate half-mortise spring hinges about 20-30% lower load capacity than equivalent full mortise versions.

Weight Rating Classifications

Standard Weight Spring Hinges

Standard weight spring hinges are the workhorse of commercial door installations, designed for doors up to 200 pounds with moderate frequency use. These hinges use 0.119" to 0.134" gauge steel construction with two ball bearings in the barrel knuckle, providing smooth operation and adequate strength for most interior commercial applications. The spring mechanism delivers a closing force suitable for doors with standard weatherstripping, conventional latch hardware, and typical environmental conditions.

Common sizes include 3-1/2" x 3-1/2", 4" x 4", and 4-1/2" x 4-1/2" with either square or radius corners to match door and frame profiles. Standard weight hinges install with 1-1/4" wood screws or 1/2" machine screws, depending on the mounting surface material. Fire ratings are available on select models. The Stanley 2060R carries UL listings for fire-rated door assemblies in stairwell and corridor applications.

Limitations become apparent in heavy-duty applications. Standard weight spring hinges may struggle with solid core wood doors over 180 pounds, doors with heavy weatherstripping or threshold seals creating significant closing resistance, or high-traffic locations where cycle counts exceed several million operations. These situations call for heavy weight configurations with increased spring capacity and structural strength.

Heavy Weight Spring Hinges

Heavy weight spring hinges handle demanding applications with door weights up to 350 pounds, high-frequency traffic, or environmental conditions requiring additional closing force. Construction uses 0.180" to 0.190" gauge steel or stainless steel with four ball bearings in the barrel, providing enhanced load capacity and smoother operation under heavy use. The larger spring coils deliver higher closing force, overcoming increased resistance from weatherstripping, wind pressure, or HVAC-induced pressure differentials.

The Hager BB1199 heavy weight series exemplifies this category with 5" x 4-1/2" dimensions, stainless steel construction, and ANSI A156.1 Grade 1 certification, the highest durability rating for commercial hinges. These hinges suit exterior doors, high-security applications, institutional facilities with abuse-resistant requirements, and any installation where standard weight hinges would require frequent adjustment or premature replacement.

The cost difference between standard and heavy weight hinges ranges from 50-100% depending on materials and certifications. This premium pays dividends in reduced maintenance, heavy weight hinges maintain proper adjustment 2-3 times longer than standard weight equivalents in equivalent applications. For high-traffic doors or critical life-safety openings, the investment in heavy weight hardware provides better long-term value.

Upgrade to heavy-duty commercial hinges with ball bearing construction and extended service life ratings for demanding applications.

Material and Finish Options

Steel Spring Hinges

Steel construction provides the most economical spring hinge option with good strength and widely available finishes. Standard steel hinges use a prime-coat finish suitable for field painting, or factory-applied finishes including satin chrome (US26D), oil-rubbed bronze (US10B), satin brass (US4), and black powder coat. Steel offers an excellent strength-to-cost ratio for interior applications where corrosion isn't a concern.

Limitations involve corrosion susceptibility in exterior or high-humidity applications. Even painted steel hinges eventually show rust at screw locations or areas where finish damage exposes base metal. Coastal installations, natatoriums, commercial kitchens, and other high-moisture environments accelerate corrosion that compromises both appearance and structural integrity. These applications demand stainless steel or non-ferrous materials.

Stainless Steel Spring Hinges

Stainless steel spring hinges deliver superior corrosion resistance for exterior applications, coastal environments, high-humidity spaces, and installations where appearance retention matters over extended service life. Type 304 stainless provides adequate corrosion resistance for most applications, while Type 316 stainless offers enhanced resistance for severe marine or industrial environments.

The satin stainless finish (US32D) is standard, providing a clean contemporary appearance that doesn't require maintenance to retain appearance. Unlike painted or plated finishes that degrade over time, stainless steel maintains its appearance through the hinge service life. Cost premium over steel ranges from 100-150% depending on specifications, but eliminating refinishing and replacement costs in corrosive environments justifies the initial investment.

Brass and Bronze Spring Hinges

Brass and bronze spring hinges suit architectural applications where traditional aesthetics or specific finish matching requirements exist. These non-ferrous materials provide natural corrosion resistance with distinctive appearance characteristics. Brass offers bright gold tones, while bronze provides reddish-brown coloring. Both materials accept various chemical finishes, including satin, antique, oil-rubbed, and polished treatments.

Strength considerations limit brass and bronze to lighter-duty applications compared to steel equivalents. The softer base metal provides less structural support under equivalent loads, and the spring mechanisms use steel components even in brass-body hinges. Cost significantly exceeds steel or stainless options; brass and bronze spring hinges typically cost 200-300% more than comparable steel versions. Their use concentrates in high-end residential, hospitality, and commercial spaces where appearance justifies the premium.

Specialized Spring Hinge Types

Concealed Spring Hinges

Concealed or invisible spring hinges install completely hidden within the door edge and frame, leaving no visible hardware when the door is closed. These specialized hinges suit contemporary architectural applications where minimal hardware visibility is desired, museum or gallery installations where period authenticity matters, or modern commercial spaces emphasizing clean lines and uninterrupted surfaces.

Installation complexity exceeds standard spring hinges significantly. Concealed hinges require precise mortising with close tolerances, often need routing of channels for spring mechanisms, and demand careful alignment between door and frame components. Adjustment access may be limited compared to standard hinges, complicating field tuning during installation. The architectural benefit comes with reduced load capacity; most concealed spring hinges handle lighter doors than equivalent-sized standard configurations.

Adjustable Tension Spring Hinges

While most commercial spring hinges include some tension adjustment capability, certain models feature enhanced adjustment ranges or mechanisms designed for frequent field modification. These adjustable models suit applications where door conditions vary seasonally (temperature affecting weatherstripping compression), where precise closing force balance is critical (ADA compliance in accessible buildings), or where multiple doors need identical closing performance despite minor differences in weight or resistance.

Numerical tension indicators on some models facilitate consistent adjustment across multiple doors. Rather than counting hex key rotations, installers reference marked scales showing relative tension settings. This speeds installation on projects with dozens or hundreds of spring-hinged doors requiring uniform performance. The McKinney TA series includes this feature along with an extended adjustment range accommodating wider door weight variations.

Fire-Rated Spring Hinges

Fire-rated spring hinges carry UL listings certifying performance in fire door assemblies tested to UL 10C standards. These hinges must demonstrate the ability to close and latch the door under fire exposure conditions, maintain structural integrity through temperature extremes, and continue functioning through the rated duration (typically 90 minutes or 180 minutes). Fire-rated hinges include permanent labels identifying the rating; removing or painting over labels voids the certification.

Selection for fire-rated applications requires matching the hinge rating to the door assembly rating. A 90-minute rated door assembly requires all components, including hinges carry a minimum 90-minute rating. Using non-rated hinges or mixing ratings voids the assembly certification, creating code violations and potential liability. The Stanley 2060R fire-rated series meets NFPA 80 requirements for fire door assemblies in commercial buildings, with clear labeling supporting inspection and certification verification.

Selection Criteria and Application Matching

Assessing Door Characteristics

Proper spring hinge selection begins with an accurate door assessment. Measure door dimensions and calculate approximate weight. Solid core wood runs 3-4 pounds per square foot, hollow metal 5-7 pounds per square foot, depending on gauge and core. Add weight for glass lites, louvers, and hardware. Round up to the next hinge weight rating; a 185-pound door needs heavy weight hinges rated 200+ pounds, not standard-weight weight rated to 200 pounds. The margin accommodates weatherstripping resistance and environmental factors that consume closing force.

Fire rating determines whether you need UL-listed hinges. Check the door label, all components in fire-rated assemblies must carry equivalent or higher ratings. Non-rated hinges void the assembly certification regardless of door compliance. Fire-rated hinges cost 20-40% more than non-rated equivalents but represent mandatory expenses in life-safety applications.

Environmental Considerations

Exterior installations, coastal locations, and high-humidity spaces require stainless steel or specially coated spring hinges to resist corrosion. Standard steel hinges fail rapidly in these environments, and corrosion attacks the spring mechanism internally, even when external surfaces appear intact. The Hager stainless steel series provides 316-grade stainless steel for severe marine exposure or chemical environments where lesser materials degrade.

Wind exposure affects spring force requirements significantly. Exterior doors in high-rise buildings or exposed locations need heavier springs or additional hinges to overcome wind pressure that prevents proper closing. Calculate wind loads using local building codes. Commercial buildings in high-wind zones may require wind-rated door assemblies with specific hardware specifications exceeding standard commercial grades.

Traffic Volume and Duty Cycle

High-traffic applications demand heavy weight spring hinges even when the door weight falls within the standard rating capacity. The increased cycle testing in heavy weight hinges (typically 3-5 million cycles versus 1-2 million for standard weight) provides margin for extended service life. Schools, hospitals, retail entrances, and other facilities with continuous traffic throughout operating hours benefit from heavy weight specifications that reduce adjustment frequency and extend replacement intervals.
