Door protection plates transform vulnerable door surfaces into abuse-resistant barriers that extend door service life by decades in high-traffic commercial and institutional environments. Schools, hospitals, retail stores, restaurants, warehouses, and multifamily housing experience constant door abuse from foot traffic, cleaning equipment, hand carts, wheelchairs, and everyday operational wear that destroys unprotected door finishes within months. While repainting or refinishing doors provides a temporary cosmetic improvement, protection plates address the root cause, preventing damage before it occurs through durable metal or plastic barriers strategically positioned where doors experience the most severe abuse.

This guide identifies the top commercial door protection plates based on material durability, installation versatility, fire rating compliance, aesthetic integration, and field-proven performance in demanding institutional environments. We've evaluated plates across critical criteria: material gauge and composition (stainless steel, aluminum, brass, plastic), sizing standards for different protection types (kick plates, mop plates, armor plates, stretcher plates), mounting methodology (screw-attached, adhesive, magnetic), finish options coordinating with architectural hardware, and NFPA 80 fire rating requirements.

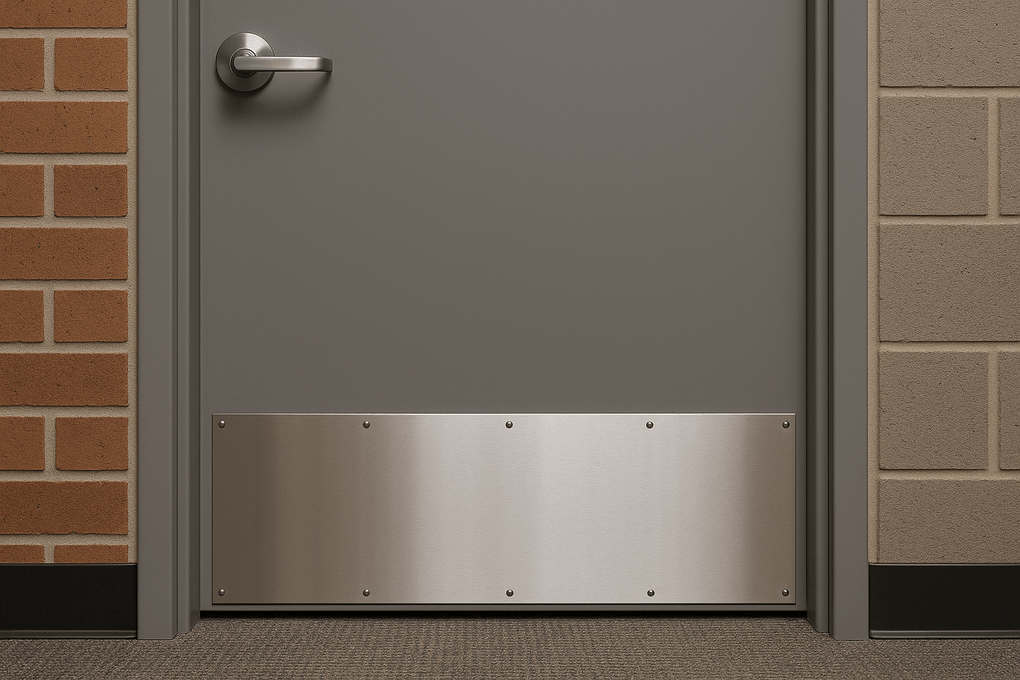

1. Stainless Steel Kick Plates (0.050" Standard Duty)

Standard duty 0.050" stainless steel kick plates dominate commercial specifications due to an optimal balance between durability and cost. The material provides excellent corrosion resistance, maintains appearance through years of high-traffic exposure, and requires minimal maintenance. Satin stainless finish (US32D) hides minor scratches and fingerprints while coordinating with modern commercial door hardware, including our door closers and locksets.

Common sizes include 8" x 34", 10" x 34", and 12" x 34," accommodating most commercial door widths. Pre-drilled countersunk screw holes accept #6 x 5/8" fasteners, simplifying installation on both wood and hollow metal doors. Four beveled edges provide safety and aesthetic finish. Applications include offices, retail stores, schools, apartment buildings, and any moderate-traffic commercial environment requiring durable door protection without institutional-grade specifications.

2. Heavy-Duty Stainless Steel Kick Plates (0.062")

Heavy-duty 0.062" gauge stainless steel plates provide enhanced impact resistance for institutional environments experiencing severe abuse. The thicker material resists deflection under cart impact, prevents denting from aggressive foot contact, and provides extended service life in schools, hospitals, government facilities, and other high-traffic institutional settings. The 25% thickness increase over standard duty translates to substantially improved durability, justifying the 30-40% cost premium.

Installation follows the same procedures as standard duty plates, but the enhanced rigidity allows larger sizes without center support fasteners. Plates up to 16" x 48" maintain structural integrity with perimeter mounting only, while equivalent standard duty sizes might require additional center fasteners, preventing deflection. This simplifies installation and creates a cleaner appearance on oversized doors.

3. Extra Heavy-Duty Stainless Steel Armor Plates (0.125")

Extra-heavy 0.125" stainless steel armor plates address extreme abuse in correctional facilities, psychiatric hospitals, loading docks, and industrial applications where equipment impact would deform lighter materials. The substantial thickness, 2.5 times standard duty, provides institutional-grade protection against deliberate abuse, severe cart impacts, and operational conditions that destroy lesser hardware within months. Heights from 18" to 48" provide comprehensive coverage protecting vulnerable door areas subjected to wheelchair, hospital bed, and equipment contact.

Fire rating considerations become critical at these heights. Plates exceeding 16" on fire-rated doors require UL fire rating certification and installation per listing requirements. The extra heavy gauge often accompanies fire-rated specifications since the facilities requiring extreme durability also typically mandate fire protection. Coordinate with door manufacturers, ensuring compatible fire ratings across the complete assembly.

4. Aluminum Kick Plates: Lightweight Economic Protection

Aluminum plates deliver corrosion resistance at 40-50% lower cost than equivalent stainless steel, making them popular for budget-conscious commercial projects. Clear anodized finish (US28) provides a bright metallic appearance, coordinating with aluminum storefront frames and contemporary architectural styles. The lighter weight simplifies installation, less the strain on adhesive bonds or fasteners, and reduces shipping costs on large volume orders.

The trade-off involves reduced impact resistance. Aluminum dents more easily than stainless steel under equivalent impact, requiring thicker gauges (0.062" minimum) for applications where stainless steel 0.050" would suffice. Applications favoring aluminum include retail storefronts, office buildings, and commercial spaces where aesthetics matter, abuse levels remain moderate, and budget constraints limit premium material use.

5. Brass and Bronze Architectural Plates

Brass and bronze protection plates suit high-end commercial installations, hotels, corporate headquarters, and upscale retail, where architectural hardware aesthetics justify premium material costs. Finish options include polished brass (US3), satin brass (US4), satin bronze (US10), and oil-rubbed bronze (US10B), coordinating with traditional architectural styles and brass or bronze door hardware from our builder's hardware selection.

The substantial material cost, 200-300% over equivalent stainless steel, limits brass and bronze to applications where appearance justifies expense. Corporate lobbies, hotel main entrances, museum facilities, and upscale retail spaces commonly specify these premium materials as part of comprehensive architectural hardware packages. Maintenance requirements exceed stainless steel significantly, brass and bronze tarnish without regular polishing, and protective lacquer finishes wear through in high-contact areas requiring periodic refinishing.

6. Clear Acrylic Protection Plates

Clear 0.125" acrylic plates provide transparent impact protection, maintaining door appearance while preventing surface damage. The material absorbs impacts that would dent metal plates, making plastic suitable for applications where aesthetics demand minimal hardware visibility. Applications include decorative wood doors, glass lite protection, and architectural entries where door appearance outweighs protection plate visibility concerns.

Scratching resistance limitations mean plastic plates show surface wear faster than metal alternatives. However, the plates prevent damage to the underlying door surfaces even as they accumulate cosmetic wear themselves. Cost advantages of 50-60% compared to stainless steel make acrylic attractive for large-scale projects where metal plate costs become prohibitive. Performance remains adequate in moderate traffic commercial applications, though institutional facilities with severe abuse typically specify metal for enhanced durability.

7. Screw-Mounted Installation Systems

Screw mounting represents the professional installation standard, providing secure attachment through multiple fastener points, distributing load, and preventing plate movement under impact. Pre-drilled countersunk holes accept #6 x 5/8" or #6 x 3/4" screw, depending on door thickness. The countersunk design allows screw heads to sit flush with plate surfaces, preventing snagging and creating a clean finished appearance.

Installation requires drilling pilot holes matching plate hole patterns, approximately 7/64" for #6 screws in wood doors. Drive screws progressively in a star pattern, distributing clamping force evenly and preventing plate warping. Wood door installation is straightforward, while hollow metal doors require screws penetrating into door stiles or reinforcement rather than just face sheets. Fire-rated doors mandate screw mounting; NFPA 80 prohibits adhesive-only installation on rated assemblies.

8. Adhesive-Mounted Quick-Install Plates

3M VHB adhesive tape provides drill-free mounting suited to rental properties, historic preservation, or applications where drilling isn't permitted. The adhesive creates permanent bonds when properly applied, resisting peel and shear forces. However, adhesive mounting cannot be used on fire-rated doors; fire codes require mechanical fasteners for all protection plates on rated assemblies. Surface preparation determines bond strength. Clean thoroughly with isopropyl alcohol and allow a 24-48-hour cure time before traffic exposure.

Temperature affects adhesive performance significantly. Apply only in climate-controlled environments between 60-80°F. Avoid exterior applications or areas experiencing wide temperature swings. Applications include residential conversions, tenant improvement projects, and temporary installations where plate removal without surface damage is anticipated. Cost savings from eliminated drilling labor offset adhesive material costs in appropriate applications.

9. Fire-Rated Armor Plates (UL Listed)

UL-listed fire-rated armor plates carry certifications for use on fire door assemblies, maintaining fire ratings while providing protection exceeding the 16" threshold, where standard plates require rating. These plates undergo testing, verifying performance under fire exposure, ensuring they don't compromise the door assembly's fire resistance. Labels on installed plates are verified during fire marshal inspections; missing or painted-over labels trigger code violations.

Installation follows UL listing requirements precisely, uses only specified fasteners at specified spacing, installs on doors within listed size ranges, and maintains documentation proving compliance. Deviating from listing parameters voids fire rating regardless of apparent similarity to tested configurations. Applications include hospital corridor doors, school stairwell entries, and any fire-rated opening requiring protection coverage exceeding 16" height.

10. Edge Guards and Complete Protection Systems

Door edge guards complement face plates by protecting vulnerable door edges where carts and equipment impact during passage. L-shaped edge guards wrap the door edge, U-shaped designs cover both face and edge, and mortised versions sit flush with door surfaces for a clean appearance. Coordinate edge guards with face plates, ensuring compatible materials, finishes, and fire ratings, creating comprehensive door protection systems.

Complete protection packages combining kick plates, mop plates, edge guards, and sometimes stretcher plates provide total door protection, addressing all vulnerability points. Hospitals, schools, warehouses, and institutional facilities benefit from systematic protection that prevents damage rather than reactive replacement after abuse occurs. Our builders' hardware category includes complete protection solutions for high-traffic commercial environments.

Installation Best Practices

Proper installation determines whether protection plates deliver years of service or fail prematurely. Position plates with adequate clearance from door edges, typically 1" from vertical stiles, 1" from the bottom rail. This sizing provides maximum coverage while maintaining structural integrity around plate perimeters. Use appropriate fastener lengths penetrating a minimum of 3/4" into solid door material beyond plate thickness.

For fire-rated installations, follow manufacturer instructions exactly; fastener type, count, spacing, and installation torque may be specified in UL listings. Document installations with photographs showing proper plate position, label visibility, and fastener installation supporting future inspections. Coordinate protection plate installation with door hardware, including our door closers, ensuring plates don't interfere with closer arms, panic hardware, or other mounted components.
