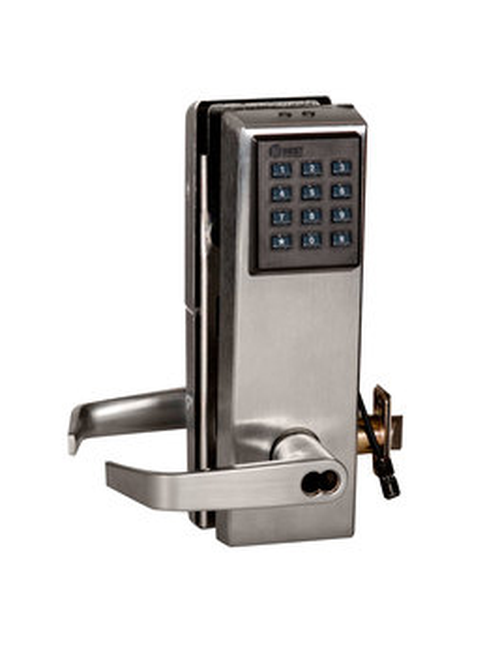

Best 9KZ37DV15KPSTK626 keypad EZ Cylindrical Lock, Satin Chrome

BEST 9KZ Keypad EZ Cylindrical Lock, 2-3/4" Backset, 7-Pin Housing; Accepts all BEST Cores,
DV with Key Function, Curved with Return, Keypad Trim, Standard Strike, Satin Chrome

Cylindrical Latch w/key override (DV):
Mechanical:
Dead locking latchbolt operated by lever either side, except when outside lever is locked by internal motor drive mechanism.
Electronic:
Internal motor drive mechanism operated by electronic signal when presenting valid token. Green light indicates valid access. Red
light and sounder indicate invalid access attempt.

Hardware Features

• Heavy-duty mechanical platform designed and manufactured for the toughest applications.
• The key override feature allows for mechanical access.
• 12 position keypad design with audible and visual feedback.
• Optional 8-cell battery holder for longer life, or standard 4-cell battery holder, each with AA alkaline batteries that are easily changed.
• Local factory-trained technical services are available 24 hours a day to meet any emergency need.
• Replacement parts available.
• Weather-resistant for versatile applications, including doors exposed to inclement weather.
• Remote unlock standard.

Software Features

• Variable PIN length from 3-6 digits.
• Maximum of 50 users.
• All programming occurs through the keypad.
• Passage Mode privilege – authorized users can unlock device for extended periods of time.
• Deadbolt Override privilege – authorized users can gain access even when a mortise deadbolt is thrown.
• Provides for 1 Administrator PIN and 5 Supervisor PINs to allow easy management of groups of users.

9KZ – Cylindrical Specifications

Materials – Internal parts are brass, zinc or corrosion-treated steel.

Chassis – 2 1⁄16” diameter to fit 2 1⁄8” diameter hole in door.

Strike – S3 Brass or bronze, 4 7⁄8” H x 1 1⁄4” W x 3⁄32” D. ANSI A115.1.
STK Brass or bronze, 2 3⁄4” x 1 1⁄8” x 3⁄32”. Fits standard door frame cut out as specified in ANSI A115.3

Backset – 2 3⁄4” standard, 3 3⁄4” and 5” available.

Door thickness – For doors 1 3⁄4” - 2 1⁄4” thick.

Installation – Lock dimensions requires modified door prep ANSI A156.2 Series 4000, Grade 1 to mount
housing.

Latchbolt – 9⁄16” throw.

Escutcheon – Dimensions: 10 1⁄2” H x 3 5⁄16” W x 1” D sloping down to 3⁄4”.

Lever – Made from high-quality zinc alloy. Body is approximately 1 5⁄8” in diameter: Handle is
approximately 4 3⁄4” in length (from center-line of chassis). (#14 and #15 conform to California Titles 19
and 24.)

Certification – UL listed For GYQS Electrically controlled single point locks or latches for use on
3 hour A label doors. The listing applies for both U.S. and Canadian applications.

Electronic

Primary power – 4 AA batteries (standard). 8 AA batteries for longer life, or 4 cell shrink wrapped battery pack (optional)
*Two phase battery warning system is given via audible and visual responses reducing the potential for complete power loss.

Memory backup – Maintains programming indefinitely.

Relative humidity – 10% to 90% non-condensing.

Shock – 2000 Gs RMS (maximum door-slam shock)

Compliance – Compliance to FCC, Canadian, and European EMC requirements; for interference FCC Class A digital apparatus

Keypad

Bezel size – 2 5⁄8” x 3 3⁄8”

Material – Bezel–high impact ABS, Keypad–encapsulated elastomer.

ESD Protection – 15KV.

Button operating life – 3-5 million cycles.

Button operating force – 3.88 ounces.

Sealing – Weatherproof lens and gasket provides protection for outdoor use (Usable in most environmental/exterior applications)

9KZ-3-7-DV-15-KP-S3-626
